Yamato Electric MSA Series Waterproof Canon Plug Connection Straight Connector
Manufacturer: Yamato Electric Co., Ltd.
Model: MSA Series

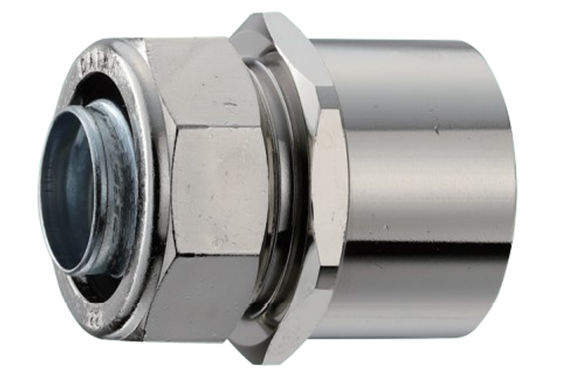

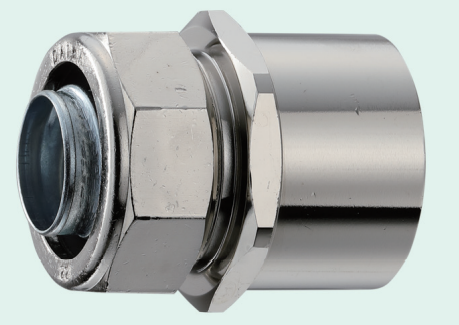

Waterproof Canon Plug Connection Straight Connector — MSA
- This is a straight connector used to connect waterproof canon plugs to flexible conduits.
- An O-ring is attached to the connection part between the canon plug and connector.
- Waterproof and dustproof construction: Protection grade IP67 (refer to compatibility table for flexible conduits and connectors on P12).
Note:
- Waterproof canon plugs differ from American Union canon plugs, so please be careful when connecting.
- For connecting non-waterproof canon plugs, please use MSU (P35).
- For connecting canon plugs with an end bell, please use MSU (non-waterproof).

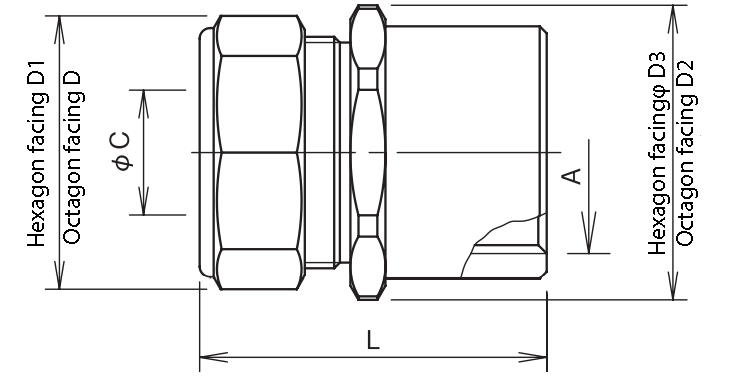

Unit: mm
| Marking | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Name | American Unified Thread A | Inner Diameter (C) | Length of Engagement (L) | Facing D | Facing D1 | Facing D2 | Facing D3 | Weight (g) | Quantity/Box (pcs) |
| MSA-10-10 | 9/16-24UNEF-2B | 8.2 | 44 | 27 | 29 | 26 | 28 | 82 | 25 |
| -14 | 3/4 -20UNEF-2B | 8.2 | 45 | 27 | 29 | 26 | 28 | 93 | 25 |
| 12-14 | 3/4 -20UNEF-2B | 10.7 | 45 | 27 | 29 | 27 | 29 | 86 | 25 |
| -16 | 7/8 -20UNEF-2B | 10.7 | 45 | 27 | 29 | 27 | 29 | 94 | 25 |
| -18 | 1-20UNEF-2B | 10.7 | 45 | 27 | 29 | 30 | 32 | 112 | 20 |
| -20 | 11/8-18UNEF-2B | 10.7 | 46 | 27 | 29 | 36 | 38 | 124 | 16 |
| -22 | 11/4-18UNEF-2B | 10.7 | 46 | 27 | 29 | 38 | 42 | 143 | 12 |
| 16-16 | 7/8 -20UNEF-2B | 14 | 48.5 | 32 | 34.5 | 32 | 35 | 122 | 20 |
| -18 | 1-20UNEF-2B | 14 | 48.5 | 32 | 34.5 | 34 | 36 | 140 | 16 |
| -20 | 11/8-18UNEF-2B | 14 | 49.5 | 32 | 34.5 | 36 | 38 | 140 | 16 |
| -22 | 11/4-18UNEF-2B | 14 | 49.5 | 32 | 34.5 | 38 | 42 | 156 | 12 |
| -24 | 1 3/8-18UNEF-2B | 14 | 49.5 | 32 | 34.5 | 41 | 43 | 175 | 8 |
| -28 | 1 5/8-18UNEF-2B | 14 | 49.5 | 32 | 34.5 | 50 | 54 | 223 | 7 |
| 22-18 | 1-20UNEF-2B | 18.9 | 48.5 | 36 | 39 | 34 | 36 | 140 | 16 |
| -20 | 11/8-18UNEF-2B | 18.9 | 49.5 | 36 | 39 | 36 | 38 | 140 | 16 |
| -22 | 11/4-18UNEF-2B | 18.9 | 49.5 | 36 | 39 | 38 | 42 | 156 | 12 |
| -24 | 1 3/8-18UNEF-2B | 18.9 | 49.5 | 36 | 39 | 41 | 43 | 176 | 12 |
| -28 | 1 5/8-18UNEF-2B | 18.9 | 49.5 | 36 | 39 | 50 | 54 | 222 | 7 |
| 28-22 | 11/4-18UNEF-2B | 24.5 | 51 | 46 | 50 | 46 | 50 | 204 | 9 |
| -24 | 1 3/8-18UNEF-2B | 24.5 | 51 | 46 | 50 | 46 | 50 | 223 | 8 |
| -28 | 1 5/8-18UNEF-2B | 24.5 | 51 | 46 | 50 | 50 | 54 | 256 | 7 |
| Material | Body: Brass bar | ||||||||
| Remarks | |||||||||
Please contact us for the names of the options.
The method of displaying the names is as below.
Example: MSA – 16 – 18
16 above means Flange Name
18 above means Canon Plug Shell Name

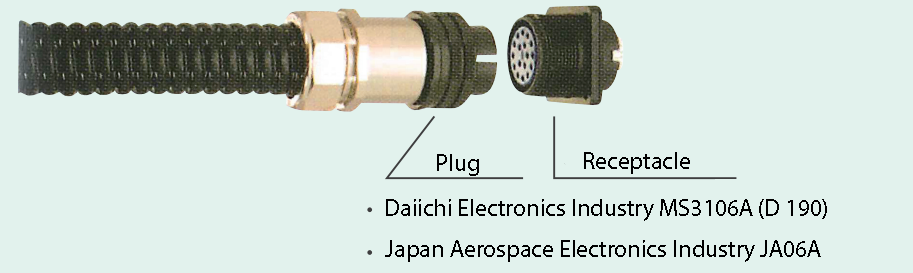

Example of Assembly
