Yamato Electric MSN Series Thin Steel Conduit Threadless Coupling Connector
Manufacturer: Yamato Electric Co., Ltd.
Model: MSN Series

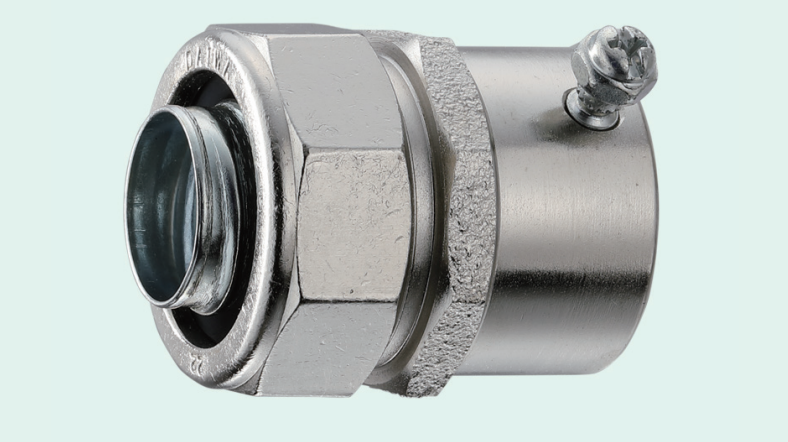

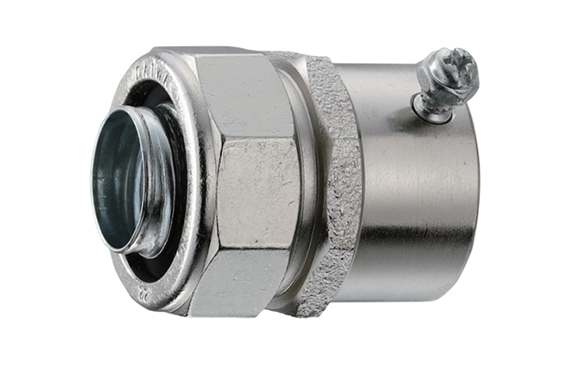

Thin Steel Conduit Threadless Coupling Connector MSN
- This is a straight connector for connecting a thin steel conduit and a flexible conduit.
- It features a guide collar that protects both the inner and outer diameters of the flexible conduit end, and a specially developed tightening ring, ensuring reliable tightening and securing.
- The conduit is secured with a small screw. (Models 28-31 and 36-39 include 2 small screws.)
- Liquid-proof/Dust-proof structure: The flexible conduit connector’s connection part has protection class IP67 (Refer to the P12 flexible conduit and connector compatibility table).

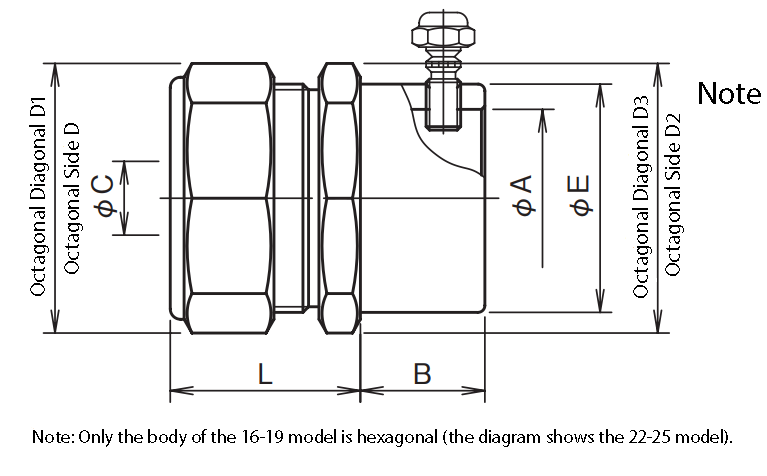

Unit: mm
| Nominal Size | A | Applicable Thin Steel Conduit Thread Nominal Size | Inner Dia. B | Inner Dia. C | Length L | Across Flats D | Across Corners D1 | Across Flats D2 | Across Corners D3 | E | Mass (g) | Quantity/Box (pcs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MSN-16-19 | 19.4 | CTC 19 | 18 | 14 | 27.5 | 32 | 34.5 | 32 | ¢35 | 27 | 120 | 20 |
| MSN-22-25 | 25.7 | CTC 25 | 18 | 18.9 | 27.5 | 36 | 39 | 36 | 39 | 33 | 110 | 16 |
| MSN-28-31 | 32.1 | CTC31 | 21 | 24.5 | 30 | 46 | 50 | 47 | 51 | 40 | 204 | 9 |
| MSN-36-39 | 38.4 | CTC 39 | 21 | 33.1 | 32.5 | 54 | 58.5 | 55 | 60 | 48 | 272 | 6 |
| Material: Body: Blackheart malleable cast iron, brass rod | ||||||||||||
| Notes | ||||||||||||
