Yamato Electric MST/ MAT Series Spring-Loaded Connector

Manufacturer: Yamato Electric Co., Ltd.
Model: MST/ MAT Series

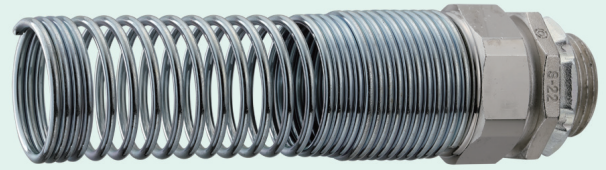

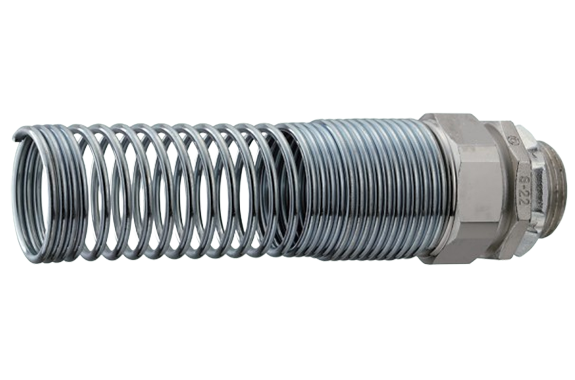

Spring-Loaded Connector MST/ MAT

This connector is used in areas where a flex can be repeatedly moved or in cases where you want to make the flex stand up on its own in a U-shape.
The spring reduces the stress on the flex and has the effect of making movement smoother.
Dustproof/waterproof structure: Protection class IP67 (Refer to the compatibility chart for P12 flex and conne)
Flex connectors other than M/SK and M/AK can also be made spring-loaded. (Please contact us for details.)

Unit: mm

	Symbol
Nominal Size	Thick Steel Screw A			Inner Dia. B	Inner Dia. C	Length L	Across Flats D	Across Corners D1	Across Flats D2	Across Corners D3	Spring President L1	Mass (g)
Nominal Size	Electrical Conduit Screw Nominal	Pipe Parallel Screw Nominal	Recommended Mounting Hole Diameter	Inner Dia. B	Inner Dia. C	Length L	Across Flats D	Across Corners D1	Across Flats D2	Across Corners D3	Spring President L1	Mass (g)
MST-10-16	CTG 16	G 1/2	21	14	8.2	22	27	29	27	29	100	142
MST-12-16	CTG 16	G 1/2	21	14	10.7	23	27	29	29	29	100	168
MST-16-16	CTG 16	G 1/2	21	14	14	26.5	32	35	32	34.5	100	230
MST-16-22	CTG 22	G 3/4	27	14	14	26.5	32	35	36	39	100	248
MST-22-22	CTG 22	G 3/4	27	14	18.9	26.5	36	39	36	39	100	248
MST-28-28	CTG 28	G 1	34	16	24.5	29	46	49	46	50	130	428
MST-36-36	CTG 36	G 1 1/4	42	18	33.1	30.5	55	59	54	58.5	150	634
MST-42-42	CTG 42	G 1 1/2	48	18	38.1	33	65	70	60	65	180	1064
Material	Main body: Zinc alloy die-cast
Remarks

For information about option names, please contact us.

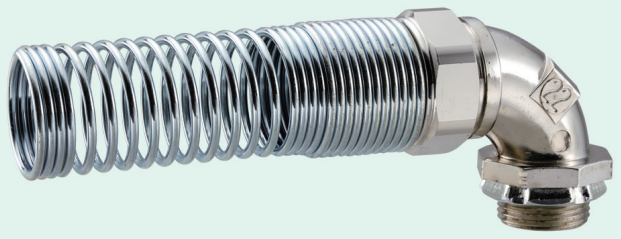

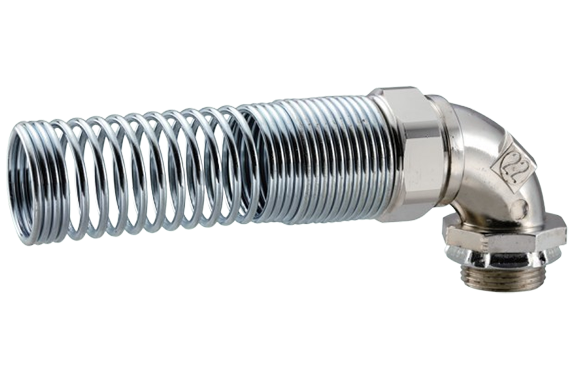

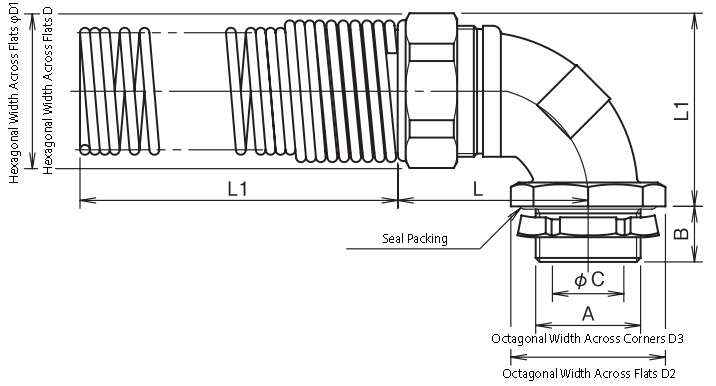

Unit: mm

	Symbol
Nominal Size	Thick Steel Screw A			Inner Dia. B	Inner Dia. C	Length L	Length L1	Across Flats D	Across Corners D1	Across Flats D2	Across Corners D3	Spring President L1	Mass (g)
Nominal Size	Electrical Conduit Screw Nominal	Pipe Parallel Screw Nominal	Recommended Mounting Hole Diameter	Inner Dia. B	Inner Dia. C	Length L	Length L1	Across Flats D	Across Corners D1	Across Flats D2	Across Corners D3	Spring President L1	Mass (g)
MAT-10-16	CTG 16	G 1/2	21	14	8.2	37	33	27	29	27	29	100	160
12-16	CTG 16	G 1/2	21	14	10.7	39.5	37	27	29	27	29	100	192
16-16	CTG 16	G 1/2	21	14	14	42.5	40	32	35	27	29	100	254
16-22	CTG 22	G 3/4	27	14	14	42	42	32	35	36	39	100	276
22-22	CTG 22	G 3/4	27	14	18.9	48	49	36	39	36	39	100	316
28-28	CTG 28	G 1	34	16	24.5	54.5	57	46	49	46	50	130	536
36-36	CTG 36	G 1 1/4	42	18	33.1	59.5	65	55	59	54	58.5	150	808
42-42	CTG 42	G 1 1/2	48	18	38.1	66.5	73	65	70	60	65	180	1324
Material	Main body: Zinc alloy die-cast
Remarks
