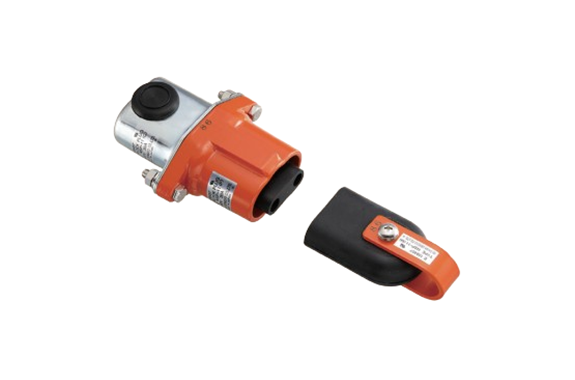

Yamato Electric NSP-11/ NSP-11-UL/ NSP-11-CSA
Manufacturer: Yamato Electric Co., Ltd.
Model: NSP-11/ NSP-11-UL/ NSP-11-CSA

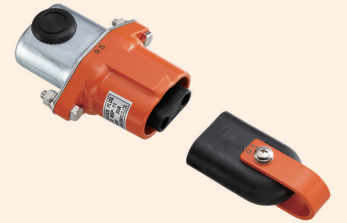

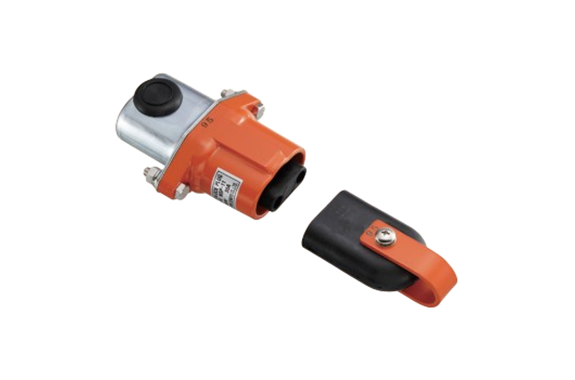

NSP-11
- This is a product with higher rated voltage and current than the SPT series.
- The NSP-11-W, equipped with a fixing wire on the handle, is also available. (Wire length 280mm -> See P115)

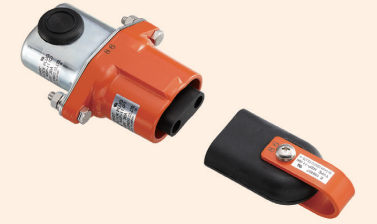

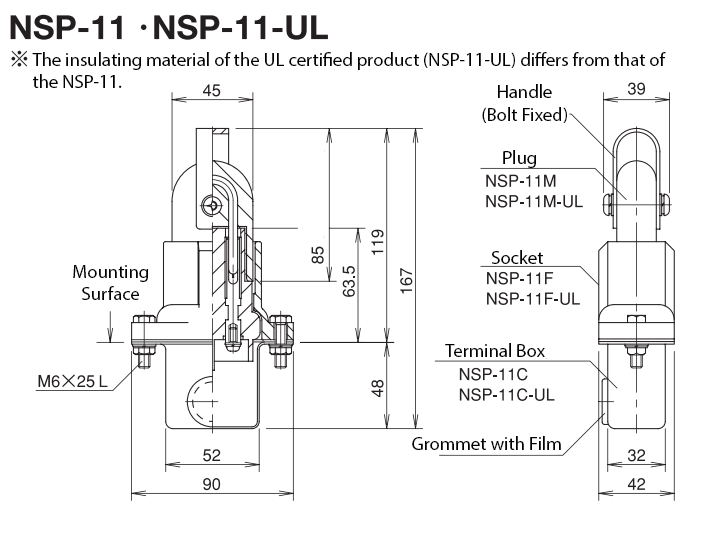

| NSP-11 | NSP-11-UL |
 UL Standard Certified Product | |
 |  |

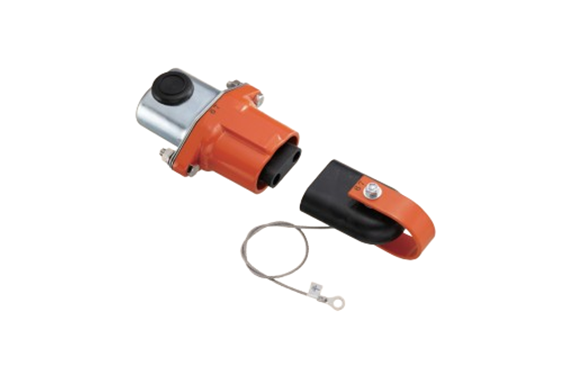

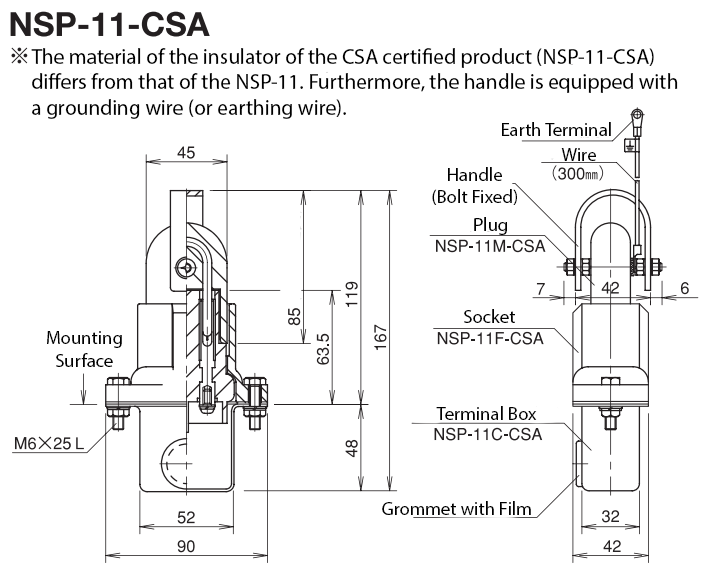

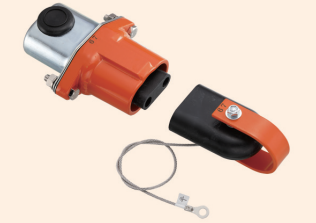

| NSP-11-CSA |
 CSA Standard Certified Product |
 |
Specifications – Ratings
| Rating | 600V, 30A (Min 24V, 5mA) |
| Mass | Standard: 420g UL: 430g CSA: 445g |
| Wiring Terminal | 2XM4 |

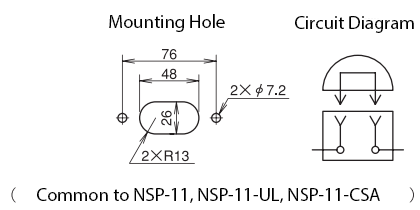

| Handle Mounting | Bolt, Nut |
| Max Mounting Plate Thickness | Max 4.5mm |
