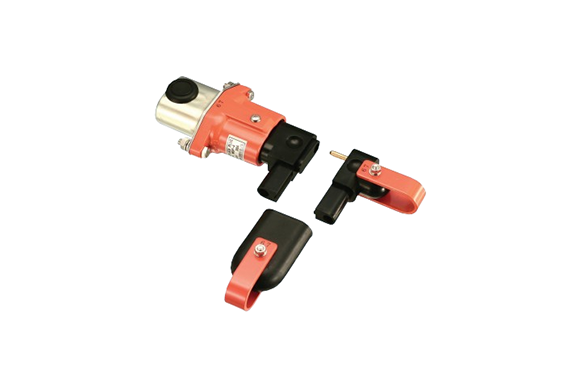

Yamato Electric NSP-4
Manufacturer: Yamato Electric Co., Ltd.
Model: NSP-4
NSP-4
- This is a product with higher rated voltage and current than the SPT series.

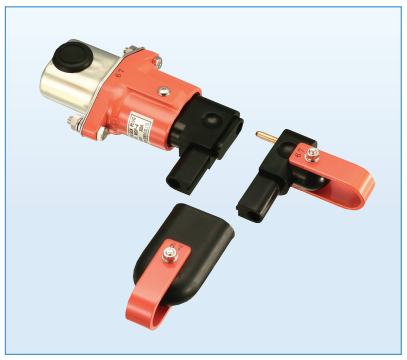

- Because it has a three-part structure, the plug can be used for doors and portable applications.
- The NSP-4-W, equipped with a fixing wire on the handle, is also available. (Wire is attached to NSP-4FM. Wire length 280mm -> See P109)

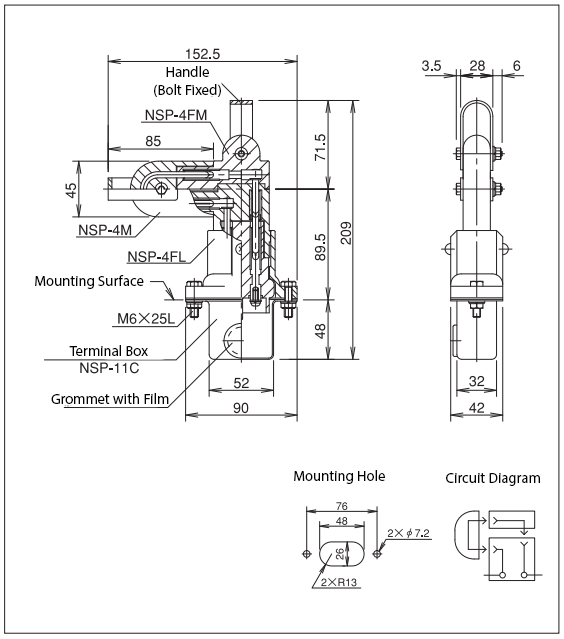

Specifications – Ratings
| Rating | 600V, 30A (Min 24V, 10mA) |
| Mass | 570g |
| Wiring Terminal | 2XM4 |
| Handle Mounting | Bolt, Nut |
| Max Mounting Plate Thickness | Max 4.5mm |

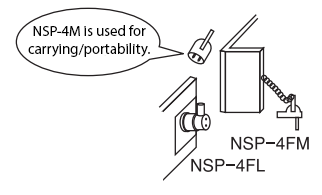

Example of Use
