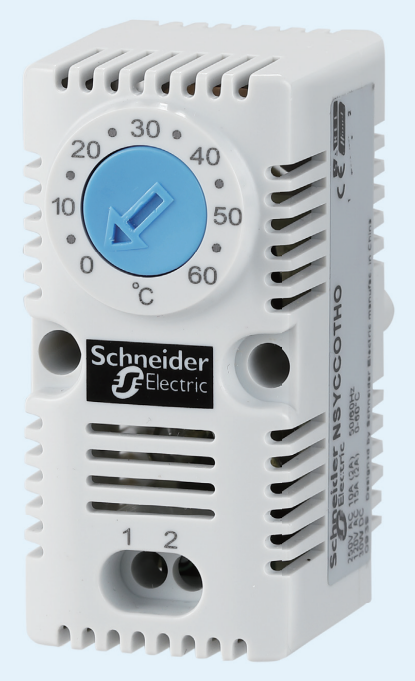

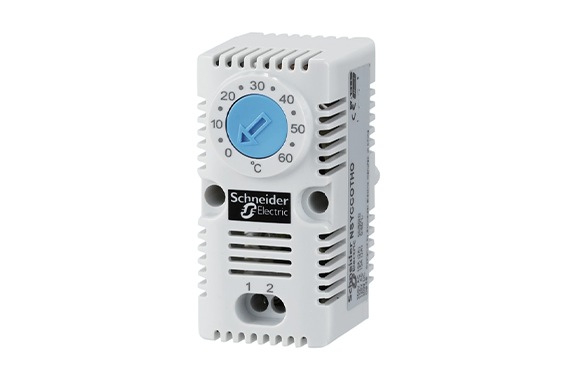

Yamato Electric NSYCCOTHO

Manufacturer: Yamato Electric Co., Ltd.
Model: NSYCCOTHO

Other Thermal Management Equipment

We handle thermostats for heat exchangers and PC lockers.

.Stepless setting is possible within the range of $0\sim 60^\circ\text{C}$ .
The fan can be driven in response to temperature changes inside the panel, contributing to energy savings and longer fan life.
Compact size requires minimal installation space.
Can be mounted on a DIN rail, flat surface, and rectangular hole ( $11\text{mm}\times 13\text{mm}\times \text{t}1.5\text{mm}$ ).
Can also be used to detect abnormally high temperatures in the panel when combined with a lamp or buzzer.

Model	NSYCCOTHO
Contact Type	A Contact (ON during operation, OFF upon return)
Temperature Setting Range (°C)	0 ~ 60
ON-OFF Temperature Hysteresis	Approx. 7K (ON at set temp, OFF at set temp – 7K)
Temperature Tolerance (K)	±4
Contact Capacity	AC 250V 10A, AC 120V 15A (Resistive Load)
	AC 250V 2A (Inductive Load, Power Factor 0.6)
	DC Load 30W Max 500mA
Operating Ambient Temperature Range (°C)	-20 ~ 80 (No freezing or condensation)
Operating Ambient Humidity Range (%)	90 or less
Overvoltage Category	III (EN 60730-1 Annex L)
Pollution Degree	2 (EN 60730-1 Annex N)
Dielectric Strength	AC 2000V 1 minute (Between terminals and enclosure)
Mechanical Durability	100,000 Cycles (EN 60730-1, EN 55014, EN 55082 T1, T2 standards)
Protection Structure	IP20

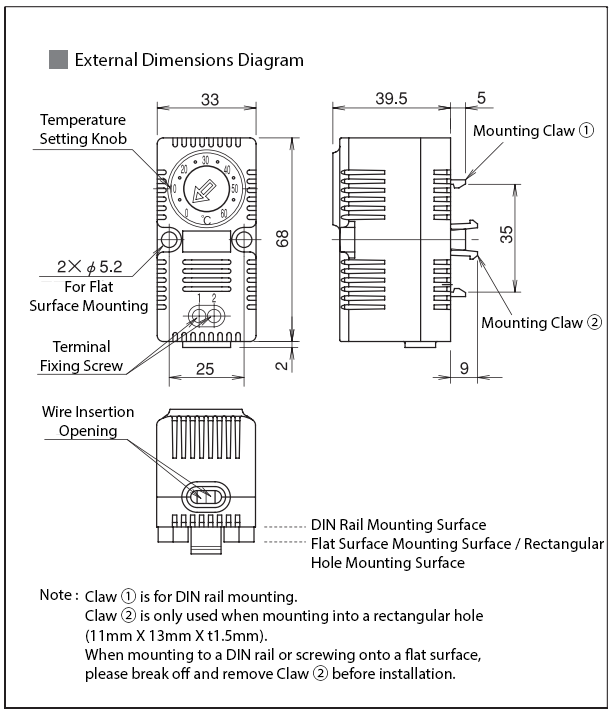

External Dimensions (W × H × D) (mm)	33 × 68 × 39.5
Mass (g)	Approx. 40
Wiring	0.5 ~ 2.5 mm² single wire or ferrule terminal recommended Terminal tightening torque: 0.5N·m Max
