Yamato Electric NYS Series Cable Connector (Resin-made)
Manufacturer: Yamato Electric Co., Ltd.
Model: NYS Series

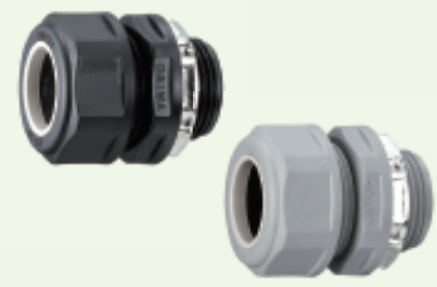

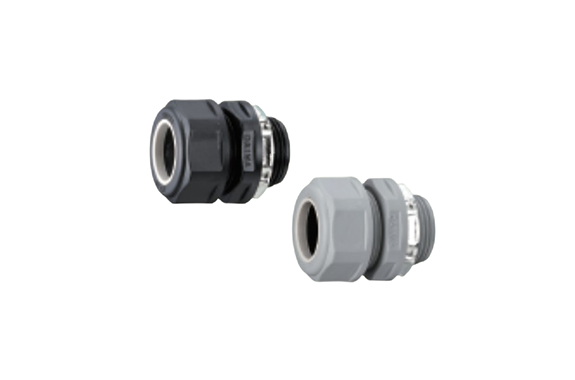

Cable Connector (Resin-made) NYS
- A resin-made cable connector that securely grips cables and allows them to be pulled into boxes, etc.
- The material for the main body and the cover nut is flame-retardant grade UL94V-0 polyamide (PA66).
- Available in two colors: black (B) and gray (G).
- NYS’s dustproof/waterproof structure: Protection rating IP67.
Unit: mm

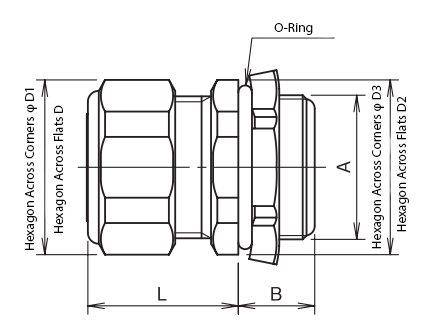

| Nominal Size | Accommodated Cable Outer Dia | Armor Screw A | B | Across Flats D | Across Corners D1 | Across Flats D2 | Across Corners D3 | Ring Length L | Cap Color | Mass (g) | Qty/Box | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Conduit Pipe Thread Nominal Size | Pipe Parallel Thread Nominal Size | Recommended Mounting Hole Diameter | ||||||||||||
| NYS- 2.5〜5 | φ 2.5〜φ 5 | CTG 16 | G 1/2 | 21 | 10 | 23 | 25 | 26 | 28 | 28 | Black | 19 | 25 | |
| NYS-5 〜 8 | φ 4 〜 φ 8.3 | Grey | 19.8 | |||||||||||
| NYS-9 〜 11 | φ 7 〜 φ 11.3 | 27 | Milky White | 18 | ||||||||||
| NYS-12 〜 14 | φ 10 〜 φ 14.5 | 26 | 28 | 20 | ||||||||||
| NYS-15 〜 17 | φ 13 〜 φ 17.5 | CTG 22 | G 3/4 | 27 | 14 | 30 | 32 | 30 | 32 | 28 | 30 | 16 | ||
| NYS-20 | φ 16 〜 φ 20 | 35 | 38 | 35 | 38 | 33 | 40 | 16 | ||||||
| NYS-23 | φ 19 〜 φ 23 | CTG 28 | G 1 | 34 | 15 | 41 | 44 | 44 | 48 | 38 | Grey | 63 | 8 | |
| NYS-26 | φ 22 〜 φ 26 | Milky White | 62 | |||||||||||
| Material | Cover Nut, Body: Polyamide (PA66) | |||||||||||||
| Remarks | Regarding the nominal sizes NYS-2.5 to 5, 5 to 17, and NYS-20 to 26, the shape differs slightly. | |||||||||||||
EX: NYS – 5〜8 – B
(NYS connector, Nominal Size 5 to 8, Black color)
