Yamato Electric NYS Series Multi-Core Cable Connector (Resin)

Manufacturer: Yamato Electric Co., Ltd.
Model: NYS Series

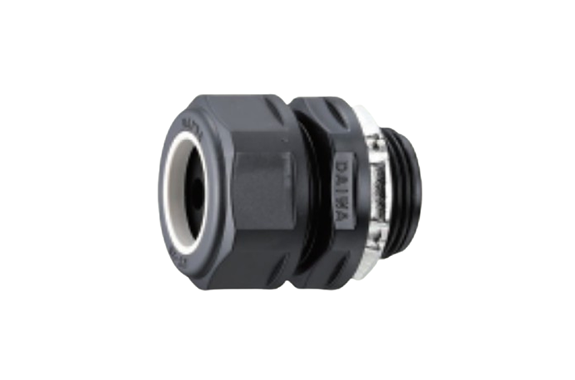

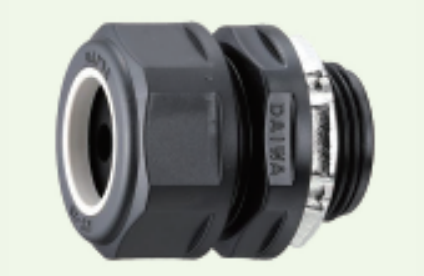

Multi-Core Cable Connector (Resin) NYS

This is a resin cable connector that securely grips multiple cables (2 to 4 cores) and allows them to be pulled into boxes and similar enclosures.
The material for the body and cover nut is flame-retardant grade UL94V-0 Polyamide (PA66).
The color tone can be selected from Black (B) and Grey (G).
NYS’s dustproof and liquid-tight structure has an Ingress Protection (IP) rating of IP67.

Unit: mm

Nominal Size	Code

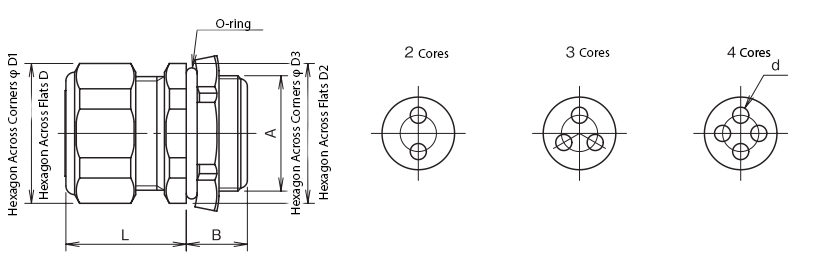

	Applicable Cable		Armor Screw A			B	Across Flats D	Across Corners D1	Across Flats D2	Across Corners D3	Ring Length L	Mass (g)	Qty/Box
	Outer Dia φd	Cores	Conduit Pipe Thread Nominal Size	Pipe Parallel Thread Nominal Size	Recommended Mounting Hole Diameter
			NYS-14-2-040		ϕ 3〜4									2	CTG 16	G 1/2	21	10	26	28	26	28	27	21	25
-2-050			ϕ 4〜5		22
-2-060	ϕ 5〜6				22
20-2-070	ϕ 6〜7	CTG 22	G 3/4	27	14	35	38	35	38	33	43	15
-2-080	ϕ 7〜8										42
-2-090	ϕ 8〜9										42
26-2-100	ϕ 9〜10	CTG 28	G 1	34	15	41	44	44	48	38	66	8
14-3-040	ϕ 3〜4	3	CTG 16	G 1/2	21	10	26	28	26	28	27	21	25
-3-050	ϕ 4〜5		CTG 16	G 1/2	21	10	26	28	26	28	27	21	25
20-3-060	ϕ 5〜6		CTG 22	G 3/4	27	14	35	38	35	38	33	43	15
-3-070	ϕ 6〜7											42
-3-080	ϕ 7〜8											42
26-3-090	ϕ 8〜9		CTG 28	G 1	34	15	41	44	44	48	38	66	8
-3-100	ϕ 9〜10		CTG 28	G 1	34	15	41	44	44	48	38	65	8
14-4-040	ϕ 3〜4	4	CTG 16	G 1/2	21	10	26	28	26	28	27	22	25
20-4-050	ϕ 4〜5		CTG 22	G 3/4	27	14	35	38	35	38	33	43	15
-4-060	ϕ 5〜6											42
-4-070	ϕ 6〜7											42
26-4-080	ϕ 7〜8		CTG 28	G 1	34	15	41	44	44	48	38	66	8
-4-090	ϕ 8〜9		CTG 28	G 1	34	15	41	44	44	48	38	65	8
Material	Cover Nut, Body: Polyamide (PA66)
Remarks	Regarding the nominal sizes NYS-14-, NYS-20-, and NYS-26-*, the shape differs slightly.
