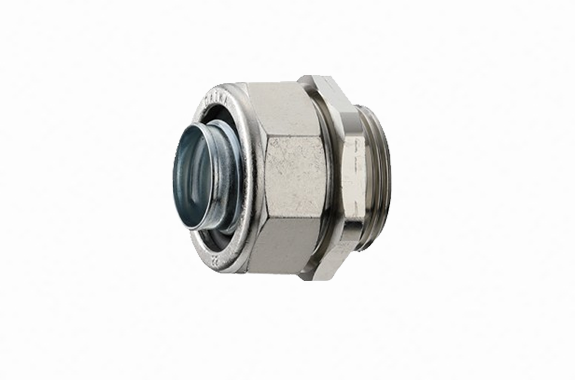

Yamato Electric Pg thread straight connector MS-PG
Manufacturer: Yamato Electric Industry Co., Ltd
Model: MS-PG
This is a connector that connects to Pg threads (DIN standard).
Please use it for connecting industrial multipole connectors (Han) to flexible conduits. (See page 279)
Seal packing and lock nut are not included.
Waterproof and dustproof structure: The flexible conduit connection part conforms to protection grade IP67 (Refer to the compatibility table with P12 flexible conduit and connector).

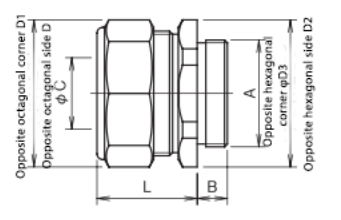

| Nominal Size/ Part Number | Thread Type A | B | Inner Diameter C | Length Before Tightening L | Opposite Flat D | Opposite Corner D1 | Opposite Flat D2 | Opposite Corner D3 | Weight (g) | Quantity per Box (pcs) |
| MS-10-Pg11 | Pg11 | 7 | 8.2 | 22 | 27 | 29 | 27 | 29 | 58 | 25 |
| 12-Pg11 | Pg11 | 7 | 10.7 | 23 | 27 | 29 | 27 | 29 | 52 | 25 |
| 12-Pg13.5 | Pg13.5 | 7 | 10.7 | 23 | 27 | 29 | 27 | 29 | 54 | 25 |
| 12-Pgl6 | Pg16 | 8 | 10.7 | 23 | 27 | 29 | 27 | 29 | 56 | 25 |
| 16-Pg16 | Pg16 | 8 | 14 | 26.5 | 32 | 34.5 | 32 | 35 | 86 | 16 |
| 22-Pg21 | Pg21 | 8 | 18.9 | 26.5 | 36 | 39 | 36 | 39 | 98 | 12 |
| 28-Pg29 | Pg29 | 8 | 24.5 | 29 | 46 | 50 | 46 | 49 | 160 | 9 |
| 36-Pg29 | Pg29 | 8 | 30* | 30.5 | 54 | 58.5 | 55 | 59 | 215 | 5 |
| Material | Body: Brass rod | |||||||||
| Remarks | This is the minimum inner diameter of the body. | |||||||||
Please contact us regarding the designation of options.
The designation format is as shown below
