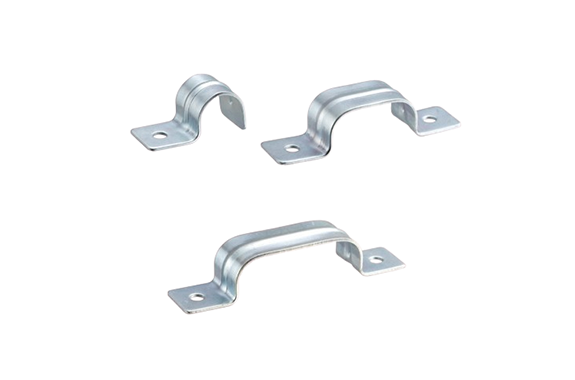

Yamato Electric PZ Series Saddle for Cable and Pipe

Manufacturer: Yamato Electric Co., Ltd.
Model: PZ Series

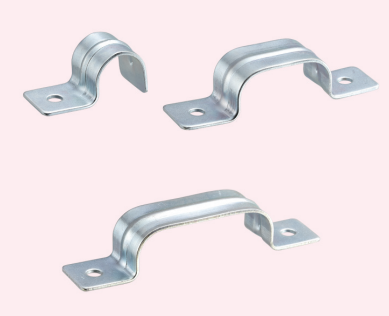

Saddle for Cable and Pipe PZ

This is a steel plate saddle that can secure cables and pipes with outer diameters from φ4 to φ30.
There is also a series available with a mounting hole diameter (d) of φ 6.2.
The minimum sales unit is per bag (or package unit).

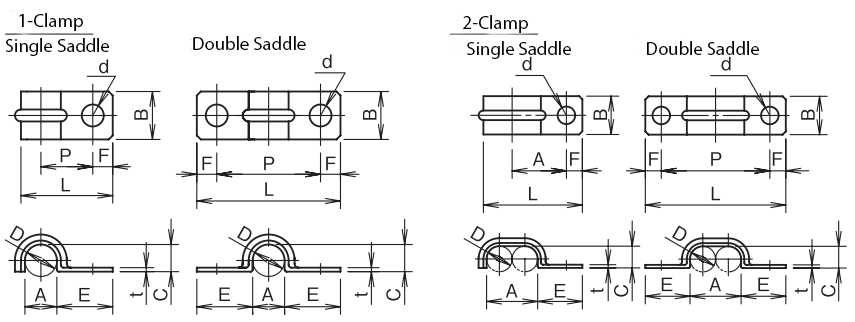

1-Clamp (Single Fix), 2-Clamp (Double Fix) Unit: mm

Nominal Size	Code
	Applicable Pipe/Cable		A	B	C	D	d	P	E	F	L	t	Mass (g)	Qty/Bag
	Pipe Dia.	Cores
															PZ-0104	4	1	4	10	3.8	4	4.5	8	11	5	15.8	0.8	225	200
♢0204															2	4	8	10		3.8	4		19.8		5	272
0106	6	1	6	5.8	6	4	17.8	288										10
0206	6	2	12	5.8	6	12	5	23.8	365
♢0108	8	1	8	12	7.8	8		5.5	13	14	23	1	580
0208	8	2	16		7.8	8			34		44		474	100
♢0110	10	1	10		9.8	10			14		25		344
1210	10	2	20		9.8	10			38		48		520
0112	12	1	12	14	11.8	12			15		27		438
1212	12	1	24	14	11.8	12			42		52		718
♢0114	14	1	14	16	13.8	14	17		17.5	7.5	32.7	1.2	750
1214	14	2	28		13.8	14	48				63		578	50
♢0115	15	1	15		14.7	15	17.5				33.7		792	100
1215	15	2	30		14.7	15	50				65		614	50
0116	16	1	16	18	15.7	16	18				34.9	1.4	1098	100
1216	16	2	32	18	15.7	16	52				67		842	50
0118	18	1	18	20	17.7	18	22		22	9	41.4		722
1218	18	2	36		17.7	18	62				80		1140
0120	20	1	20		19.5	20	23				43.4		770
1220	20	2	40		19.5	20	66				84		688	30
0122	22	1	22	25	21.5	22	48				66		500	20
1222	22	2	44		21.5	22	70				88		317	10
0125	25	1	25		24.5	25	52		22.5		70		554	20
1225	25	2	50		24.5	25	77		22.5		95		688
1228	28	1	28	30	27.5	28	58		25	10	78	1.6	846
1228	28	2	56		27.5	28	86				106		522	10
0130	30	1	30		29.5	30	60				80		886	20
1230	30	2	60		29.5	30	90				110		560	10
Material			Polished Steel Plate
Remarks			♢ The φ mark indicates a mounting hole diameter of φ 6.2. Please attach “-6.2” to the end of the nominal size.

PZ Selection Method
(Ex) PZ – 1 2 14
1: 1 is for Double Saddle, 0 is for Single Saddle
2: Number of Cores
14: Cable or Pipe Diameter

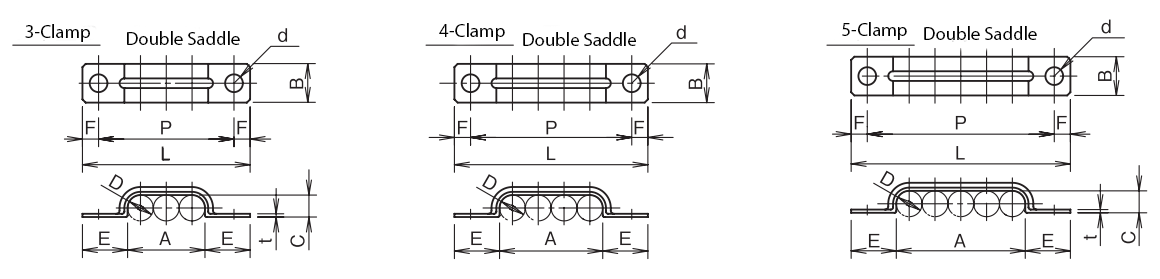

3-Clamp (Triple Fix), 4-Clamp (Quadruple Fix), 5-Clamp (Quintuple Fix) Unit: mm
