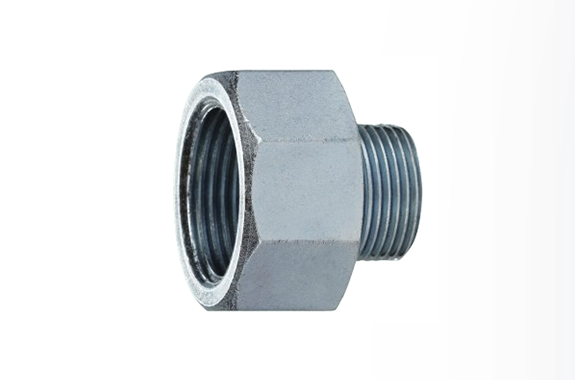

Yamato Electric RAD Series Reducing Adapter
Manufacturer: Yamato Electric Co., Ltd.
Model: RAD Series

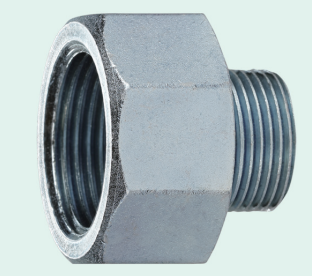

Reducing Adapter RAD
Please use this for changing thread sizes.
.
For Thick-Wall Steel Conduit Thread Unit: mm

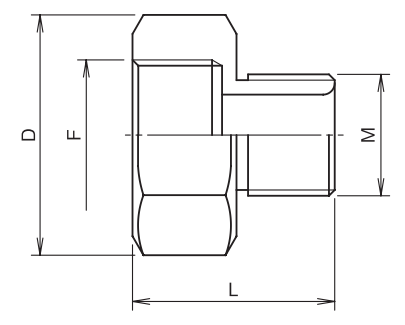

| Nominal Size | Code | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Thick-Wall Conduit Thread | L | D | Mass (g) | |||||||
| M | F | |||||||||
| AD-M16-F22 | CTG 16 | CTG 22 | 35.5 | 36 | 70 | |||||
| M22-F28 | CTG 22 | CTG 28 | 39 | 46.5 | 100 | |||||
| M28-F36 | CTG 28 | CTG 36 | 46 | 56 | 140 | |||||
| M36-F42 | CTG 36 | CTG 42 | 46 | 56 | 200 | |||||
| M42-F54 | CTG 42 | CTG 54 | 46 | 73.5 | 330 | |||||
| M54-F70 | CTG 54 | CTG 70 | 52 | 92 | 490 | |||||
| M70-F82 | CTG 70 | CTG 82 | 65 | 105.7 | 780 | |||||
| M82-F92 | CTG 82 | CTG 92 | 73 | 122 | 1190 | |||||
| M92-F104 | CTG 92 | CTG 104 | 80 | 135 | 1590 | |||||
| Material | Zinc Alloy Die-Cast | |||||||||
| Remarks | All are Build-to-Order products | |||||||||
