Yamato Electric RD/ ED Series Standard Duct

Manufacturer: Yamato Electric Co., Ltd.
Model: RD/ ED Series

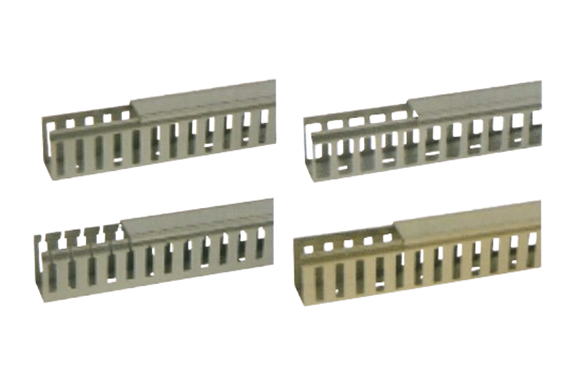

Standard Duct RD-I RD-L RD-C

Manufactured by Sanden Co., Ltd.

Excellent in heat resistance, water resistance, and mechanical strength. (UL Standard Certified Product UL94V-0 No. E206353)
Two center lines (guide grooves for drilling) are provided in the center of the mounting surface, allowing holes to be drilled at any desired location.

Uses a non-halogen resin that is environmentally friendly and does not generate harmful gases when incinerated.
Flame retardancy is self-extinguishing, certified to UL94V-0.
The specific gravity is approximately 20% lighter than PVC products, and it has excellent heat resistance.
The side holes have a chamfered finish on the inner surface.


RD-I: Silver	RD-L: Silver	RD-C: Silver	ED: Ivory

Designation	Model				Width (W) (mm)	Height (H) (mm)	Standard Length (mm)	No. of Wires Accommodated	Qty per Box (Note)
Designation	RD-I	RD-L	RD-C	ED	Width (W) (mm)	Height (H) (mm)	Standard Length (mm)	No. of Wires Accommodated	Qty per Box (Note)
23	O	O	O		18	25	2000	20	50
24	O	O	O		25	40		40	30
34	O	O	O	O	30			50
44	O	O	O	O	40			60
64	O	O	O		60			100	24
26	O	O	O		25	60		70	30
36	O	O	O	O	30	80
46	O	O	O	O	40	100
56	O	O	O		50	130		24
66	O	O	O	O	60	160		24
76	O	O	O		70	180		18
86	O	O	O		80	200
106	O	O	O		100	240
38	O	O	O		30	80		100	30
48	O	O	O		40			140	20
68	O	O	O	O	60			190	16
88	O	O	O	O	80			260	12
108	O	O	O		100			330	12
310	O	O	O		30	100		120	24
410	O	O	O		40			180	20
610	O	O	O	O	60			240	16
810	O	O	O		80			330	12
100	O	O	O		100			420	12
Materials	Standard Duct (RD-I, L, C): Polyvinyl Chloride (PVC) Eco Duct (ED): Modified Polyphenylene Ether (m-PPE)
Remarks	“Number of Wires Accommodated” indicates the maximum number of IV 2mm^2 wires. Note: Please place your order in Quantity per Box units.

Note: ED models come in 10 pieces per box for each designation.

When placing an order, please specify the following (example).
(Example) $\text{RD} - 36 - \text{L}$
