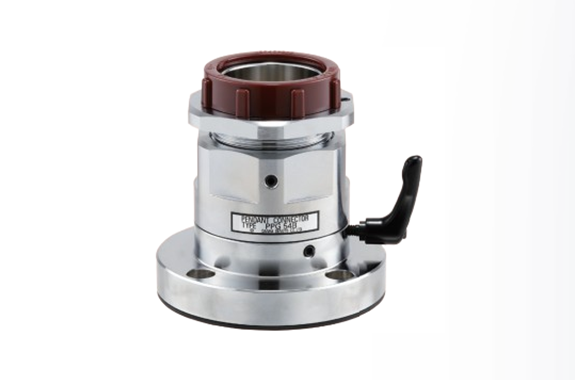

Yamato Electric RPG Series Rotating Setup Connector (Male Thread Type)
Manufacturer: Yamato Electric Co., Ltd.
Model: RPG Series
Rotating Setup Connector (Male Thread Type) RPG
Please use this for connecting control panels and control boxes. (See P87 for details)
Ordering Method
When placing an order, please specify the following details:
(Example) PPG — 42B — 90 — L
42B: Designation
90: Rotation Angle – (90, 120, 180, 270, 360)
L: Stop Lever – With (Yes): L Without (No): N
Unit: mm
| Nominal Size | Code | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A (Thread Nom. Size) | B | C | D | L | L1 | P | Pipe Body Min. Mounting Hole Dia. | Max Load (N) | Mass (g) | |||
| Max Vertical Load | Eccentric Load X 1m Shaft | |||||||||||
| RPG-28B | G 1 | 45 | 85 | 20 | 61 | 28 | 65 | φ34 | 750 | (30) | 1135 | |
| 36B | G 1 1/4 | 55 | 95 | 30 | 63 | 29 | 75 | φ42 | 1000 | (50) | 1490 | |
| 42B | G 1 1/2 | 60 | 100 | 36 | 65 | 31 | 80 | φ48 | 1000 | (55) | 1645 | |
| 54B | G 2 | 72 | 115 | 48 | 80 | 33 | 95 | φ60 | 10000 | 250 | 2465 | |
| 70B | G 2 1/2 | 86 | 130 | 60 | 85 | 37 | 110 | φ76 | 12000 | 350 | 3190 | |
| 82B | G 3 | 100 | 145 | 73 | 90 | 44 | 125 | φ88 | 14000 | 500 | 4280 | |
| Material | Steel and Cast Iron | |||||||||||
| Remarks | ( ) values are for reference. | |||||||||||
Precautions for Installation and Use
- When using under an eccentric load, please consider the strength of the mounting surface, such as that of a control panel.
- Pass the sleeve through the upper casing (or enclosure), tighten it with a lock nut, and secure it with two M6 screws.
- Screw the insulating bushing into the sleeve.
- Applying a strong impact to the stopper pin (screw) may cause the pin to break, so please adjust the rotational torque using the brake screw.

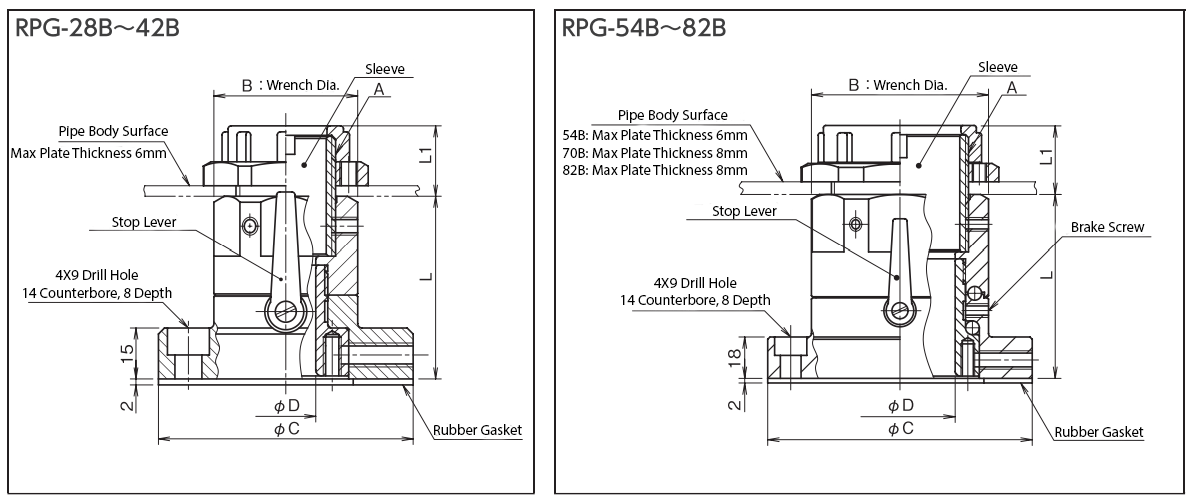

Connector Mounting Dimension Diagram
Mounting bolts are not included.
Related Products
-
Yamato Electric TC-10E Ceiling Mounting Type
-
Yamato Electric MS-F Series Straight Internal Thread Connector
-
Yamato Electric Braid-coated semi-interflex FSW
-
Yamato Electric CH Series Saddle for Flexible Conduit
-
Yamato Electric RB Series Rubber Gasket
-
