Yamato Electric

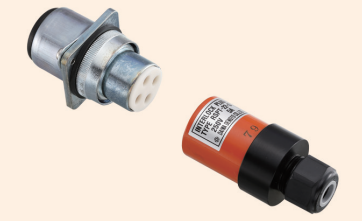

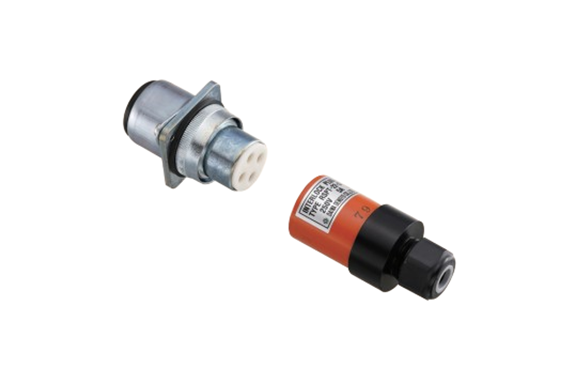

Yamato Electric RSPT-22-G
Manufacturer: Yamato Electric Co., Ltd.
Model: RSPT-22-G
RSPT-22-G
- This is a 2-circuit compatible product that allows for remote operation, similar to the RSPT-11M.
Specifications – Ratings
| Rating | 250V, 15A (Min 24V, 5mA) |
| Mass | 240g |
| Wiring Terminal | Socket: 4XM4 Plug: Solder Connection |
| Max Mounting Plate Thickness | Max 6mm |
