Yamato Electric SAF Series Stand Flexible Conduit

Manufacturer: Yamato Electric Co., Ltd.
Model: SAF Series

Stand Flexible Conduit SAF

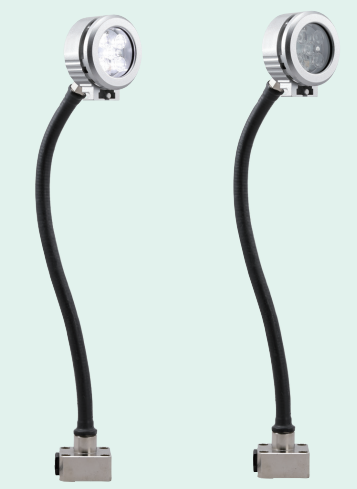

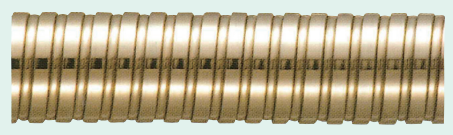

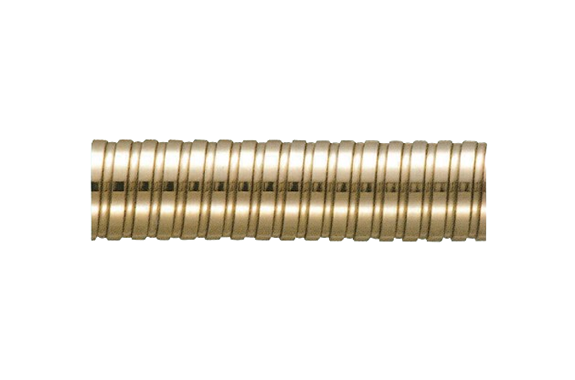

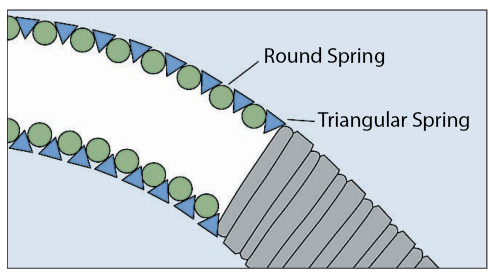

This is a stand flexible conduit constructed by combining a round spring and a triangular spring.
It bends smoothly to the necessary height and angle, and can maintain its position.
It bends smoothly without making noise.
It bends in an arc shape without snaking (or meandering).

Unit: mm (except Mass in g/m)

Nominal Size	Basic Dimensions		Mass/m (g)
Nominal Size	Outer Diameter	Inner Diameter	Mass/m (g)
SAF- 6	6	3.5	124.3
SAF- 7	7	3.7	162.2
SAF- 8	8	4.2	192
SAF- 9	9	4.8	275
SAF- 10	10	4.8	325
SAF- 11	11	5.8	362
SAF- 12	12	6.8	450
SAF- 13	13	6.8	580
SAF- 14	14	7.8	612
SAF- 15	15	8.3	650
SAF- 16	16	8.3	790
SAF- 18	18	11.0	925
SAF- 20	20	11.0	1270
SAF- 25	25	14.5	1920
Remarks	Due to the product’s structure, some errors (variation) may occur in the inner and outer diameter dimensions.

Specifications (Standard)

Material	Type A: SWB (Hard Steel Wire), SWR (Soft Steel Wire)
Method of Metal Fitting Connection	Round crimp attachment
Surface Treatment	Chrome plating

Ordering Method

Products are delivered as assembled components.
They can be manufactured up to a maximum length of 1000 mm, but the effective limiting length varies depending on the supported weight and the nominal size. Please inquire for details.

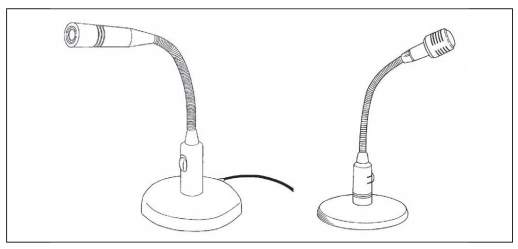

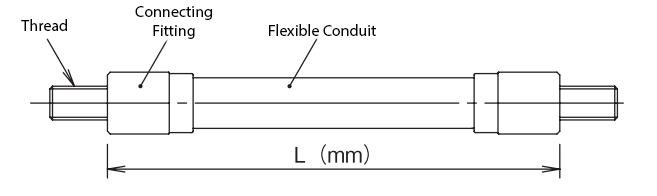

1. Flexible Conduit Length

Please specify Length L.

2. Selection of Connecting Fittings

The standard fitting connection method is round crimp attachment.
The thread size and thread length vary depending on the nominal size, so please inquire.
Please inquire regarding the attachment method and the shape of the fittings.
