Yamato Electric Spring-loaded connector MST,MAT

Manufacturer: Yamato Electric Industry Co., Ltd
Model: MST, MAT

  • This connector is used when the flexible conduit moves repeatedly or stands upright in a U-shape.
  • The spring reduces stress on the conduit and helps ensure smooth movement.
  • Waterproof and dustproof structure: Protection rating IP67 (Refer to page 12 for compatible conduits and connectors)
  • Except for MSK and MAX types, other conduit connectors can also be equipped with springs. (Please contact us for details)

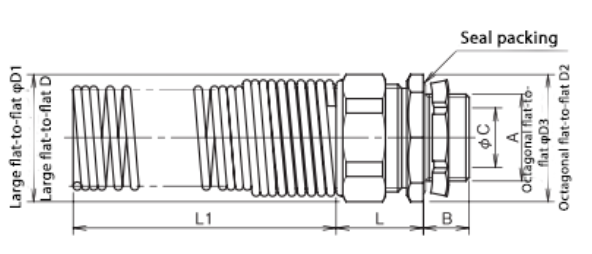

Straight Connector MST

MST

Model/CodeThread Type ABC (Inner Diameter)L (Pre-Tightening Length)Flat-to-flat dimension DFlat-to-flat dimension D1Flat-to-flat dimension D2Flat-to-flat dimension D3Spring Overall Length L1Weight (g)
Electrical Conduit ThreadThin-Walled Conduit ThreadRecommended Mounting Hole Diameter
AAST-10-16CTG 16G 1/221148.22227292729100142
12-16CTG 16G 1/2211410.72327292729100168
16-16CTG 16G 1/221141426.532353234.5100230
16-22CTG 22G3/427141426.532353639100248
22-22CTG 22G3/4271418.926.536393639100248
28-28CTG 28G 1341624.52946494650130428
36-36CTG 36G 11/4421833.130.555595458.5150634
42-42CTG42G 11/2481838.133657060651801064
MaterialMain body: Zinc alloy die-cast
Remarks

Please contact us regarding the option model name.

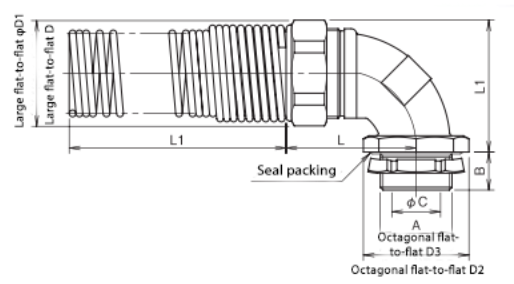

90° Angle Connector MAT

Model/CodeThread Type ABC (Inner Diameter)L (Pre-Tightening Length)L1Flat-to-flat dimension DFlat-to-flat dimension D1Flat-to-flat dimension D2Flat-to-flat dimension D3Spring Overall Length L1Weight (g)
Electrical Conduit ThreadThin-Walled Conduit ThreadRecommended Mounting Hole Diameter
MAT-10-16CTG 16G 1/221148.2373327292729100160
12-16CTG 16G 1/2211410.739.53727292729100192
16-16CTG 16G 1/221141442.54032352729100254
16-22CTG 22G3/4271414424232353639100276
22-22CTG 22G3/4271418.9484936393639100316
28-28CTG 28G 1341624.554.55746494650130536
36-36CTG 36G 11/4421833.159.56555595458.5150808
42-42CTG42G 11/2481838.166.573657060651801324
MaterialMain body: Zinc alloy die-cast
Remarks

Please contact us regarding the option model name.
