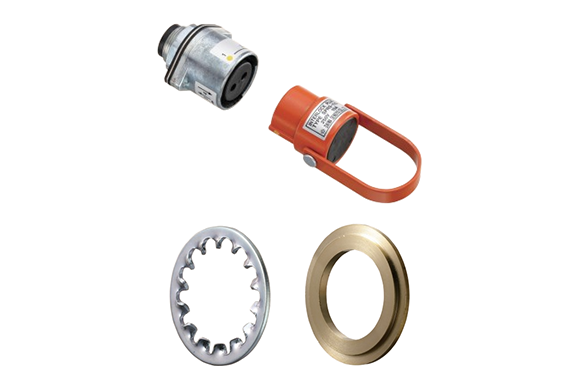

Yamato Electric SPRS-11G
Manufacturer: Yamato Electric Co., Ltd.
Model: SPRS-11G

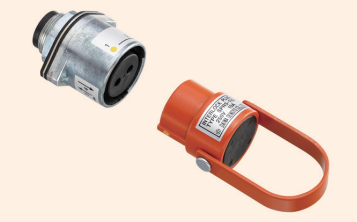

SPRS-11G

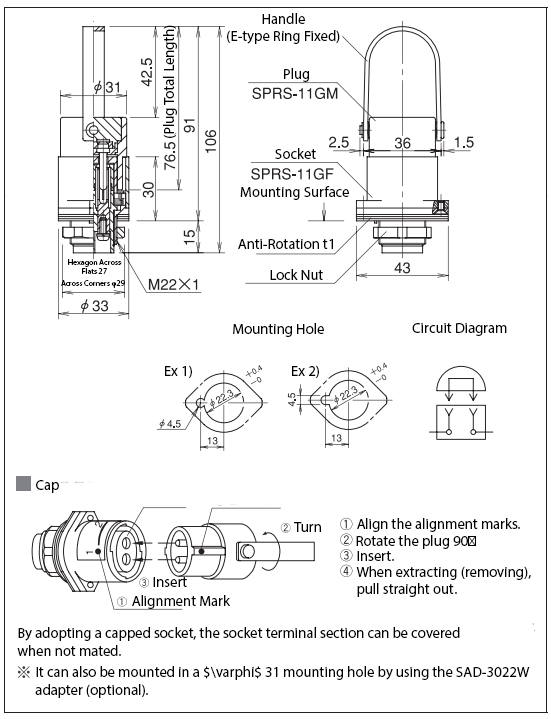

- By adopting a capped socket, the socket terminal section can be covered when not mated.
※ It can also be mounted in a ϕ31 hole by using the SAD-3022W adapter (optional).
Specifications – Ratings
| Rating | 250V, 10A (Min 24V, 5mA) |
| Mass | 190g |
| Wiring Terminal | 2XM3 |
| Handle Mounting | Bolt, E-type Ring |
| Mounting Plate Thickness | ϕ22 Mounting: Max 5mm ϕ31 Mounting (Using SAD-3022W): Max 4.5mm |

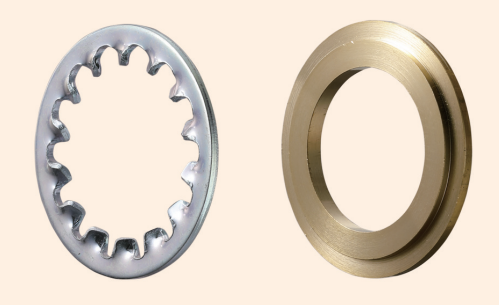

SAD-3022W
