Yamato Electric SPT-11-S14
Manufacturer: Yamato Electric Co., Ltd.
Model: SPT-11-S14

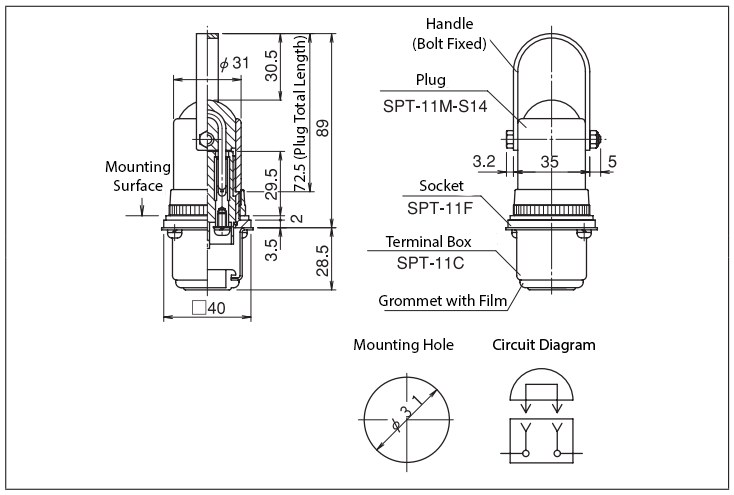

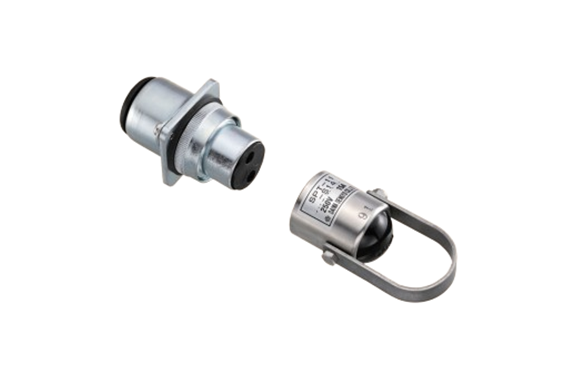

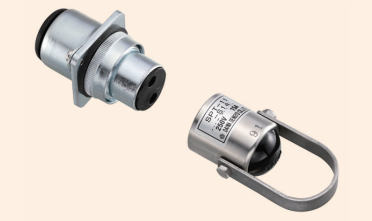

SPT-11-S14
- The plug cover and handle are made of stainless steel (no surface treatment). Therefore, there is no concern about paint peeling. (Other main specifications and dimensions are the same as the SPT-11.)
Specifications – Ratings
| Rating | 250V, 15A (Min 24V, 5mA) |
| Mass | 212g |
| Wiring Terminal | 2XM4 |
| Handle Mounting | Bolt, Nut |
| Max Mounting Plate Thickness | Max 6mm |
