Manufacturer: Yamato Electric Co., Ltd.
Model: SPT-11/ SPT-11-UL/ SPT-11-CSA

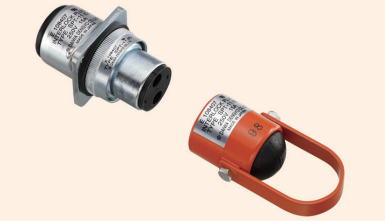

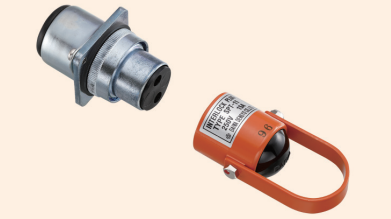

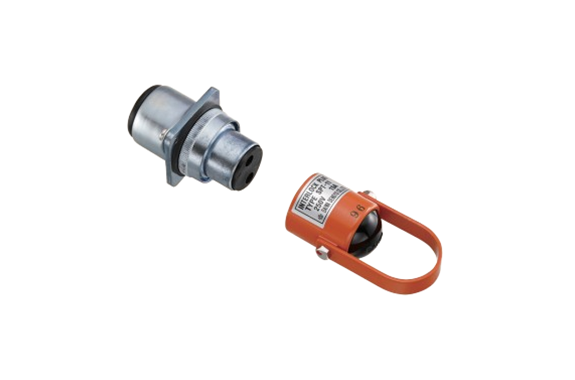

SPT-11

• This is the standard of the SPT series.
• Similar to the $\varphi$30 series push-button switches and others, installation is easy due to the adoption of a tightening ring.

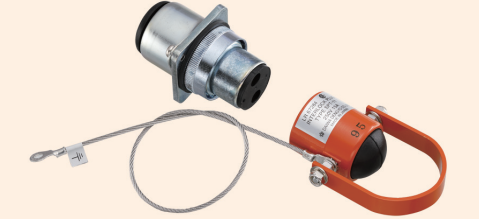

• The SPT-11-W, equipped with a fixing wire on the handle, is also available. (Wire length 280mm -> See P115)

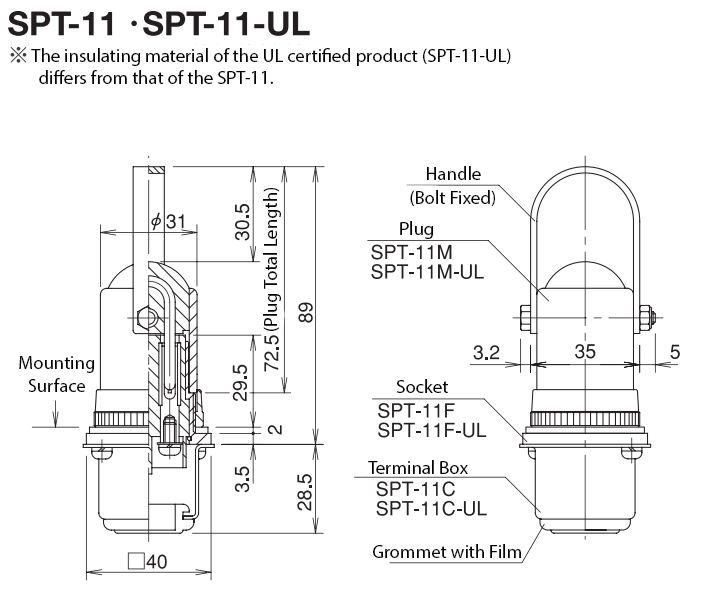

SPT-11	SPT-11-UL
	UL Standard Certified Product

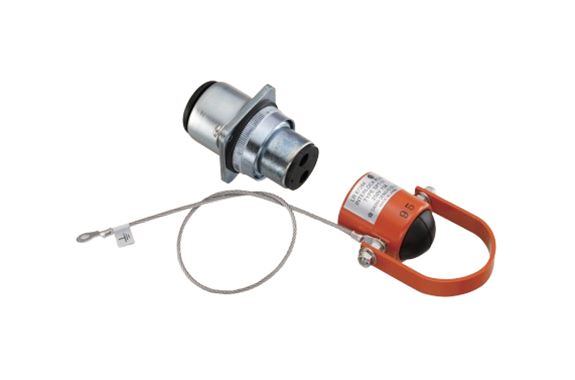

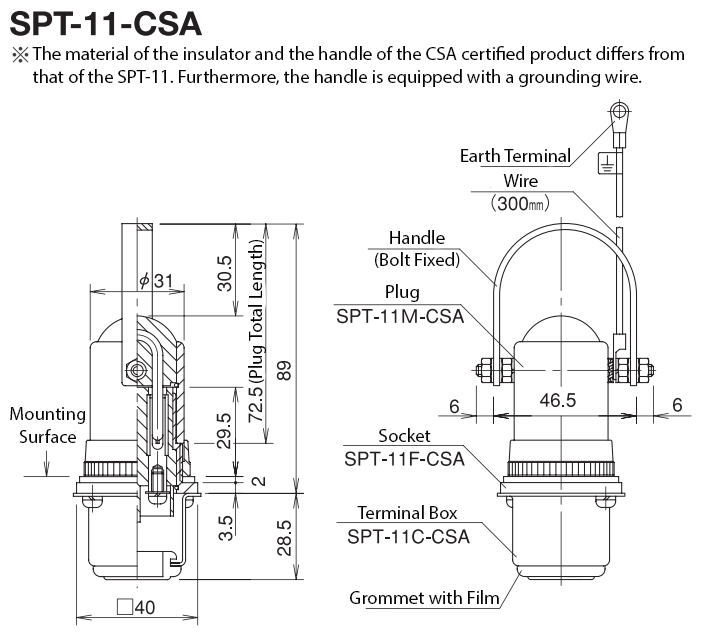

SPT-11-CSA

CSA Standard Certified Product

Specifications – Ratings
