Manufacturer: Yamato Electric Co., Ltd.
Model: SPTL-11

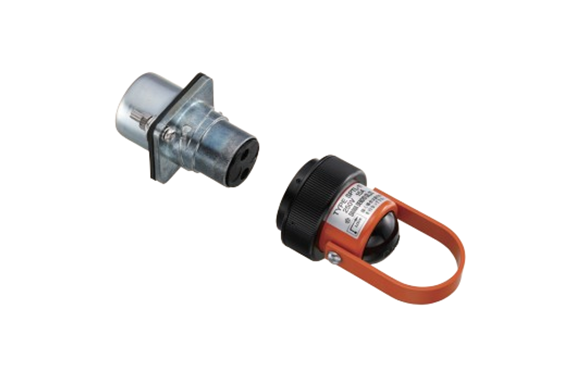

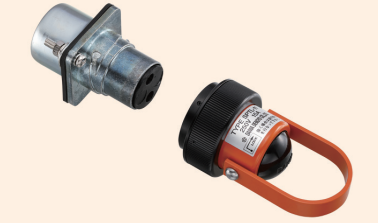

SPTL-11

• The plug is inserted, and the coupling is locked by turning it clockwise, allowing for downward installation.
• An O-ring is adopted inside the plug to prevent the intrusion of foreign matter, such as dust, during mating.
• Instead of the film-equipped grommet on the terminal box section, a G 1/2 lock nut is equipped, allowing for connector connection.
• The SPTL-11-W, equipped with a fixing wire on the handle, is also available. (Wire length 280mm -> See P115)

Specifications – Ratings
