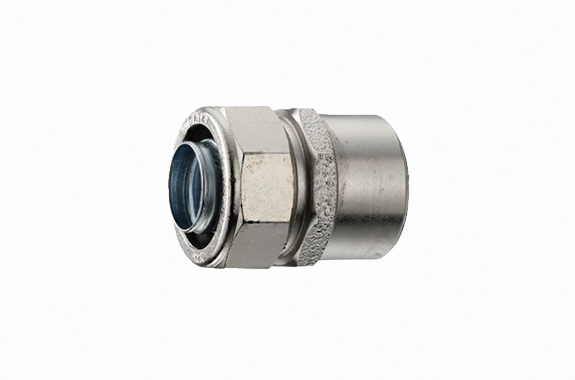

Yamato Electric Straight internal thread connector MS-F

Manufacturer: Yamato Electric Industry Co., Ltd
Model: MS-F

This is a straight connector for connecting electrical conduits and flexible conduits.
A guide collar and special tightening ring protect and securely fasten the conduit end.
The flexible conduit connector achieves IP67 protection (see p.12 for compatibility list).

MS-F

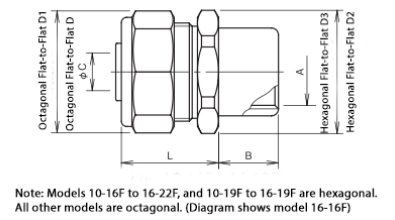

Model/Code	Thick steel thread A		B	C (Inner Diameter)	L (Pre-Tightening Length)	Flat-to-flat dimension D	Flat-to-flat dimension D1	Flat-to-flat dimension D2	Flat-to-flat dimension D3	Weight (g)	Quantity / Box (pcs)
Model/Code	Electrical conduit thread designation	Pipe parallel thread designation	B	C (Inner Diameter)	L (Pre-Tightening Length)	Flat-to-flat dimension D	Flat-to-flat dimension D1	Flat-to-flat dimension D2	Flat-to-flat dimension D3	Weight (g)	Quantity / Box (pcs)
MS-10-16F	CTG 16	G 1/2	15	8.2	23	2/	29	27	¢29	76	25
12-16F	CTG 16	G 1/2	16	10.7	23	27	29	27	029	72	25
16-16F	CTG 16	G 1/2	16	14	27.5	32	34.5	32	¢35	106	20
16-22F	CTG 22	G3/4	17	14	28.5	36	39	36	¢39	141	16
22-22F	CTG 22	G 3/4	17	18.9	28.5	36	39	36	039	118	16
28-28F	CTG 28	G 1	21	24.5	30	46	50	47	051	201	9
36-36F	CTG 36	G 11/4	21	33.1	32.5	54	58.5	55	59.5	245	6
42-42F	CTG 42	G 11/2	23	38.1	35	60	65	64	069	385	4
54-54F	CTG 54	G 2	26	49.4	38.5	75	81	77	83.5	615	2
70-70F	CTG 70	G 2 1/2	27	60.8	50	95	103	95	103	1060	1
82-82F	CTG 82	G3	30	71.6	60	110	119	110	119	1460	1
Material	Main body: Brass rod, black trivalent chromate-treated steel
Remarks

Model/Code	Thick steel thread A		B	C (Inner Diameter)	L (Pre-Tightening Length)	Flat-to-flat dimension D	Flat-to-flat dimension D1	Flat-to-flat dimension D2	Flat-to-flat dimension D3	Weight (g)	Quantity / Box (pcs)
Model/Code	Electrical conduit thread designation	Pipe parallel thread designation	B	C (Inner Diameter)	L (Pre-Tightening Length)	Flat-to-flat dimension D	Flat-to-flat dimension D1	Flat-to-flat dimension D2	Flat-to-flat dimension D3	Weight (g)	Quantity / Box (pcs)
MS-10-19F	CTC 19	—	15	8.2	23	27	29	27	¢29	81	25
12-19F	CTC 19	—	16	10.7	23	27	29	27	¢29	78	25
16-19F	CTC 19	—	16	14	27.5	32	34.5	32	¢35	112	20
22-25F	CTC 25	—	17	18.9	28.5	36	39	36	39	110	16
28-31F	CTC 31	—	21	24.5	30	46	50	47	51	205	9
36-39F	CTC 39	—	21	32	32.5	54	58.5	55	59.5	275	6
42-51F	CTC51	—	23	38.1	35	60	65	64	69	347	4
54-63F	CTC 63	—	26	49.4	38.5	75	81	77	83.5	543	2
Material	Main body: Brass rod, black trivalent chromate-treated steel
Remarks

Note 2: For the ordering example of model 82–82, please refer to page 26 of the MS listing.
For option model names, please contact us.

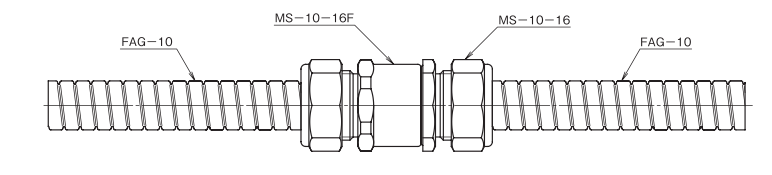

It is also possible to connect flexible conduits using standard connectors in combination.
