Yamato Electric TAYS/ TYS Series Spring-Loaded Connector for Cables

Manufacturer: Yamato Electric Co., Ltd.
Model: TAYS/ TYS Series

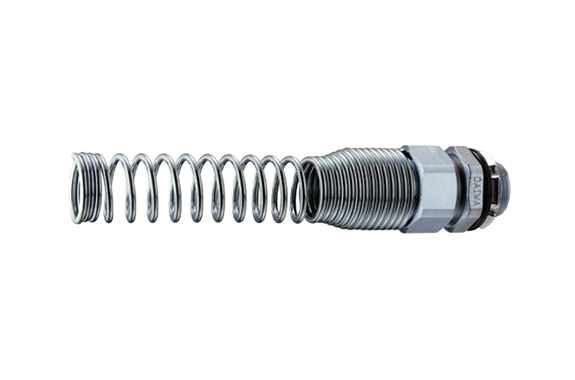

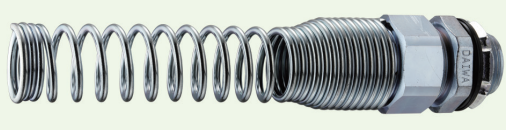

Spring-Loaded Connector for Cables TAYS TYS

This connector is used in locations where the cable moves repeatedly and in applications such as when it’s used in an inverted U-shape.
The spring has the effect of reducing the load on the cable and making its movement smoother.
Cable connectors (excluding those made of resin) can be converted into spring-loaded connectors by replacing the cover nut section.
TAYS comes with a seal washer attached to the connection point with boxes and similar enclosures.
TAYS’s dustproof and liquid-tight structure has an Ingress Protection (IP) rating of IP67.

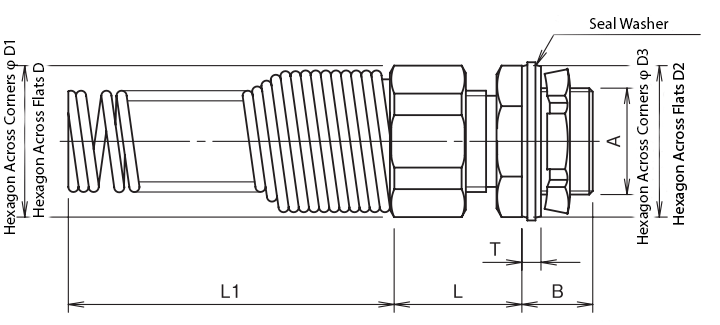

Unit: mm

Nominal Size	Code
	Accommodated Cable Outer Dia	Armor Screw A			B	T	Across Flats D	Across Corners D1	Across Flats D2	Across Corners D3	Ring Length L	L1	Mass (g)
		Conduit Pipe Thread Nom. Size	Pipe Parallel Thread Nom. Size	Recommended Mounting Hole
TAYS-5 〜 8		φ 4 〜 φ 8.3	CTG 16											G 1/2	21	14	3.5	25	27	27	29	27	100	124
9 〜 11		φ 7 〜 φ 11.3									26	128						25	27				100
12 〜 14	φ 10 〜 φ 14.5	28		30	25	106	154
15 〜 17	φ 13 〜 φ 17.5	CTG 22	G 3/4	27	17	106	32	34	34	36	27	208
20	φ 16 〜 φ 20	CTG 22	G 3/4	27	17	35	38	35	38	33	141	318
23	φ 19 〜 φ 23	CTG 28	G 1	34	18	4	41	44	44	47		37	426
26	φ 22 〜 φ 26				18	4	41	44	44	47		37	435
TYS-28	φ 25 〜 φ 28				15		45	47	41	47.5		28	447
30	φ 28 〜 φ 30	CTG 36	G 1 1/4	42	18		48	50	46	53	170		696
33	φ 30 〜 φ 33						55	57					735
35	φ 33 〜 φ 35						55	57					744
38	φ 35 〜 φ 38	CTG 42	G 1 1/2	48			58	60	52	60		31	853
Material	Body: TAYS – Zinc Alloy Die-Cast, TYS – Brass Rod, Galvanized Cast Iron
