Manufacturer: Yamato Electric Co., Ltd.
Model: TBTC Series

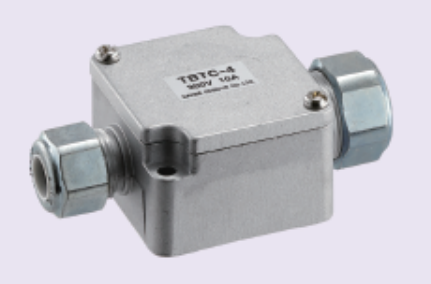

Terminal Box for Attachment – TBTC

• Compact design suitable for narrow spaces, made of aluminum die-cast with excellent mechanical strength and corrosion resistance.
• Direct wiring for 4P terminal connection.
• Equipped with cable connector functionality, making work more efficient.
• The cover uses a dustproof and oil-proof screw, improving work efficiency.
• Protection Rating: IP67 (dust and water resistance).

When ordering, please specify the following.

(Example) TBTC – 4 – 4 – B5

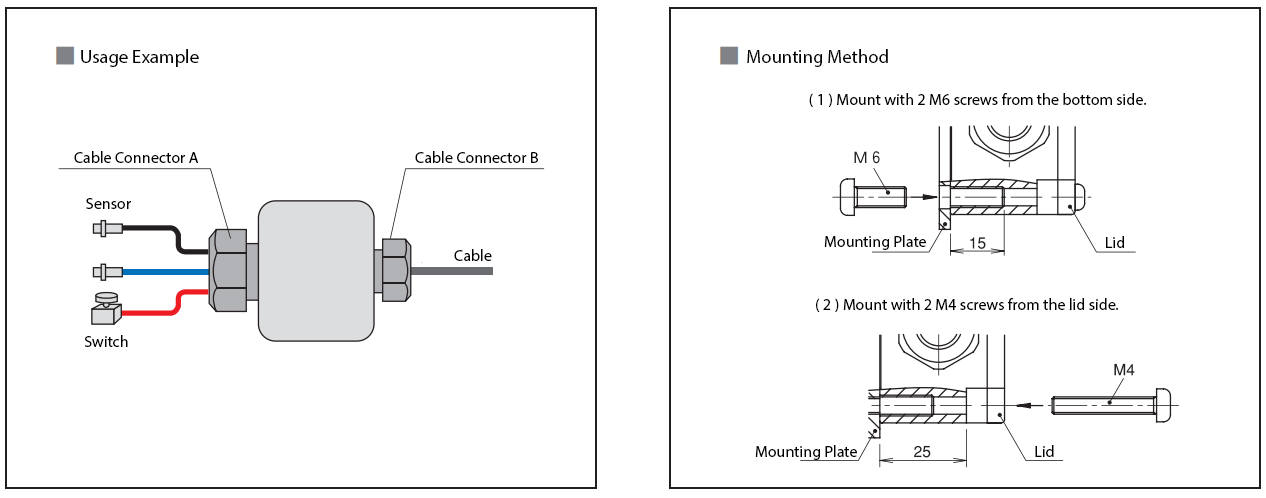

Cable Connector A Specification

• 4: Cable Outer Diameter φ3 ~ 4
• 6: Cable Outer Diameter φ5 ~ 6

Cable Connector B Specification

• Blank (No designation): Cable Outer Diameter φ7 ~ 11.3 (Standard Product)
• B5: Cable Outer Diameter φ2.5 ~ 5
• B8: Cable Outer Diameter φ4 ~ 8.3
