Manufacturer: Yamato Electric Industry Co., Ltd
Model: FAGH

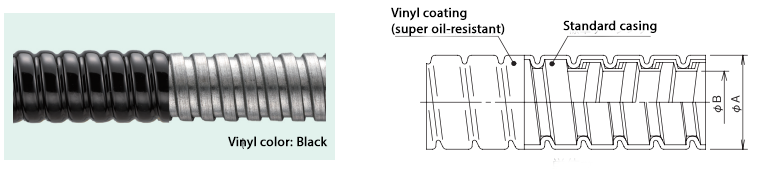

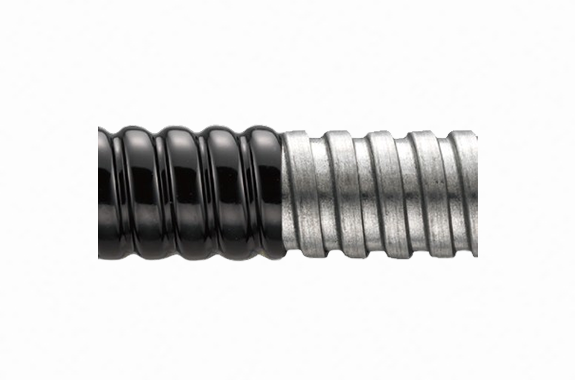

This flexible conduit features a spiral-wound galvanized steel tape casing coated with highly oil-resistant corrugated vinyl.
It is suitable for environments where cutting oil or similar substances are frequently present.
It is lightweight, has a small bending radius, and offers excellent flexibility and workability.
While primarily for fixed piping, it can also, however, handle gentle motion.
When properly connected with its dedicated connector, it also provides liquid protection equivalent to IP67. (Refer to P12 for compatibility table)

Operating Temperature Range: -20°C to +60°C
(The cold resistance is based on test data conforming to JIS K 6723 and is a reference value for fixed use.)

Unit: mm

Stainless steel version is also available. (Made to order)
