Yamato Electric
Yamato Electric Uncoated semi-interflex FSN
Manufacturer: Yamato Electric Industry Co., Ltd
Model: FSN

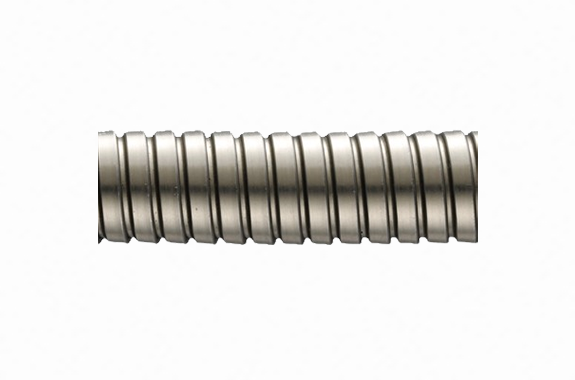

- This is a flexible conduit made only of a casing that combines galvanized steel strip in a semi-interlock structure.
- Mainly used for simple wiring, but also suitable for locations requiring tensile and torsional strength.
| Model/Code | Min. Inner Diameter B (mm) | Max. Outer Diameter A (mm) | Minimum Bending Radius (Inner Side) | Weight (kg)/Roll Length (m) | |
| Fixed | Movable | ||||
| FSN-10 | 10 | 13.2 | 55 | 75 | 7/30 |
| 12 | 12.3 | 16.1 | 60 | 80 | 8.5/30 |
| 16 | 15.8 | 19.2 | 70 | 95 | 9.8/30 |
| 22 | 20.8 | 24.5 | 90 | 120 | 13/30 |
| 28 | 26.4 | 30.6 | 110 | 140 | 19.5/30 |
| 36 | 35 | 39.5 | 120 | 160 | 13.8/20 |
| 42 | 40 | 44.8 | 150 | 200 | 17/20 |
| 54 | 51.3 | 56.5 | 180 | 240 | 11.4/10 |
| 70 | 63.5 | 71 | 240 | 300 | 18.1/10 |
| 82 | 76.2 | 82.5 | 280 | 370 | 22.1/10 |
| Material | Galvanized steel plate | ||||
| Remarks | |||||
Note: When ordering a connector for model 82, please refer to the ordering example on the MS listing page (P26).
A stainless steel version is also available. (Made to order)
