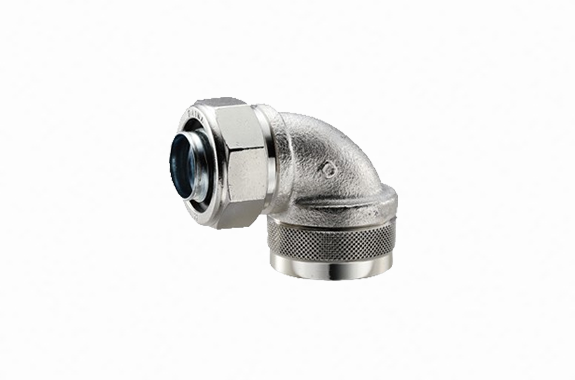

Yamato Electric Waterproof Canon plug 90° angle connector MAA
Manufacturer: Yamato Electric Industry Co., Ltd
Model: MAA
- A 90° angle connector that connects a waterproof-type cannon plug to a flexible hose.
- An O-ring is attached to the connection part between the waterproof cannon plug and the connector.
- Waterproof and dustproof performance: Protection grade IP67. (According to the compatibility table for P12 flexible hose and connector)
- The connection part between the cannon plug and the connector uses a rotating bracket, allowing for directional and positional adjustments.
- *Note: For cannon plugs, the American Unified Thread differs depending on whether they are waterproof or non-waterproof. Please be careful.

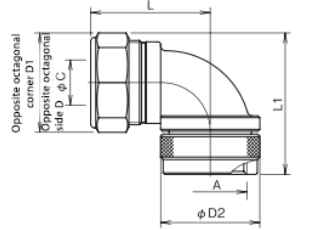

| Nominal Size/ Part Number | American Unified Thread A | Inner Diameter C | Length Before Tightening L | Opposite Flat D | Opposite Corner D1 | Opposite Flat D2 | Opposite Corner D3 | Weight (g) | Quantity per Box (pcs) | ||
| MAA-10-10 | 9/16-24UNEF-2B | 8.2 | 35.5 | 45 | 27 | 29 | 26 | 106 | 10 | ||
| -14 | 3/4-20UNEF-2B | 8.2 | 39.5 | 46 | 27 | 29 | 35 | 142 | 8 | ||
| 12-14 | 3/4-20UNEF-2B | 10.7 | 39.5 | 46 | 27 | 29 | 35 | 143 | 8 | ||
| -16 | 7/8-20UNEF-2B | 10.7 | 39.5 | 47 | 27 | 29 | 35 | 146 | 8 | ||
| -18 | 1-20UNEF-2B | 10.7 | 39.5 | 46 | 27 | 29 | 35 | 141 | 8 | ||
| -20 | 1 1/8-18UNEF-2B | 10.7 | 43.5 | 49 | 27 | 29 | 39 | 190 | 6 | ||
| -22 | 1 1/4-18UNEF-2B | 10.7 | 43.5 | 49 | 27 | 29 | 39 | 186 | 6 | ||
| 16-16 | 7/8-20UNEF-2B | 14 | 42.5 | 53 | 32 | 34.5 | 32 | 180 | 7 | ||
| -18 | 1-20UNEF-2B | 14 | 42.5 | 52 | 32 | 34.5 | 32 | 180 | 8 | ||
| -20 | 1 1/8-18UNEF-2B | 14 | 47 | 52 | 32 | 34.5 | 39 | 200 | 6 | ||
| -22 | 1 1/4-18UNEF-2B | 14 | 47 | 52 | 32 | 34.5 | 39 | 194 | 6 | ||
| -24 | 1 3/8-18UNEF-2B | 14 | 51 | 54 | 32 | 34.5 | 47 | 240 | 5 | ||
| -28 | 1 5/8-18UNEF-2B | 14 | 51 | 54 | 32 | 34.5 | 47 | 238 | 5 | ||
| 22-18 | 1-20UNEF-2B | 18.9 | 42.5 | 54 | 36 | 39 | 32 | 289 | 8 | ||
| -20 | 1 1/8-18UNEF-2B | 18.9 | 47 | 54 | 36 | 39 | 39 | 200 | 6 | ||
| -22 | 1 1/4-18UNEF-2B | 18.9 | 47 | 54 | 36 | 39 | 39 | 196 | 6 | ||
| -24 | 1 3/8-18UNEF-2B | 18.9 | 51 | 56 | 36 | 39 | 47 | 257 | 5 | ||
| -28 | 1 5/8-18UNEF-2B | 18.9 | 51 | 56 | 36 | 39 | 47 | 233 | 4 | ||
| 28-22 | 1 1/4-18UNEF-2B | 24.5 | 53 | 64 | 46 | 50 | 47 | 327 | 4 | ||
| -24 | 1 3/8-18UNEF-2B | 24.5 | 53 | 66 | 46 | 50 | 47 | 330 | 4 | ||
| -28 | 1 5/8-18UNEF-2B | 24.5 | 53 | 66 | 46 | 50 | 47 | 330 | 4 | ||
| Material | Body: Bronze casting | ||||||||||
| Remarks | |||||||||||
Please contact us regarding the designation of options.
The method for displaying the designation is as shown below.

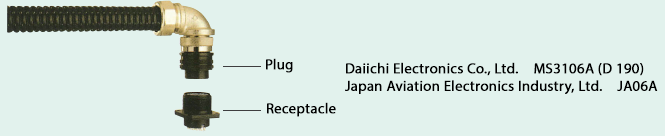

Combination Example
