Yamato Electric YSO Series Straight Connector for Waterproof Cannon Plug Connection

Manufacturer: Yamato Electric Co., Ltd.
Model: YSO Series

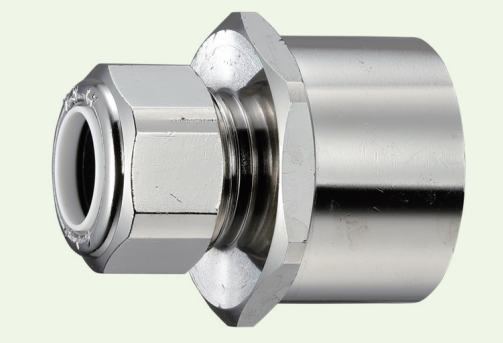

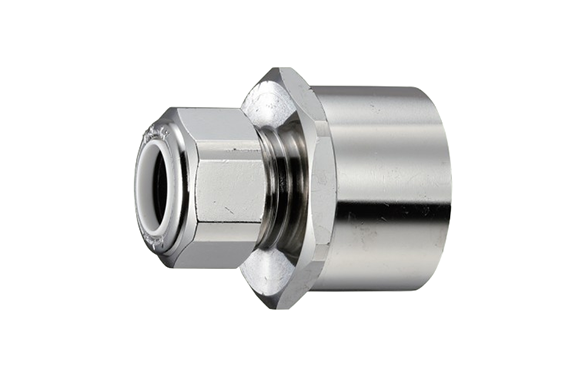

Straight Connector for Waterproof Cannon Plug Connection YSO

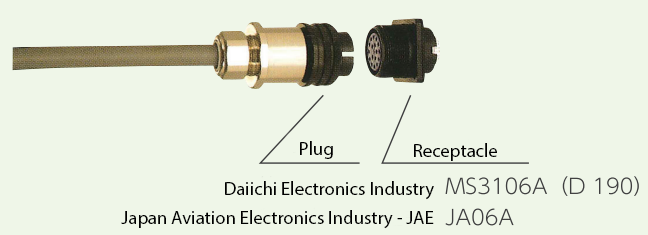

This is a connector used to connect waterproof Cannon plugs and cables.
An O-ring is attached to the connection point between the waterproof Cannon plug and the connector.
YSO’s dustproof and liquid-tight structure has an Ingress Protection (IP) rating of IP67.

※ Please note that the American Unified thread differs between waterproof and non-waterproof Cannon plugs.
※ When connecting a non-waterproof type Cannon plug, please use the AYDC (P73) connector.
※ When connecting an end-attached Cannon plug, please use the AYDC (non-waterproof) connector.

Unit: mm

Designation	Code

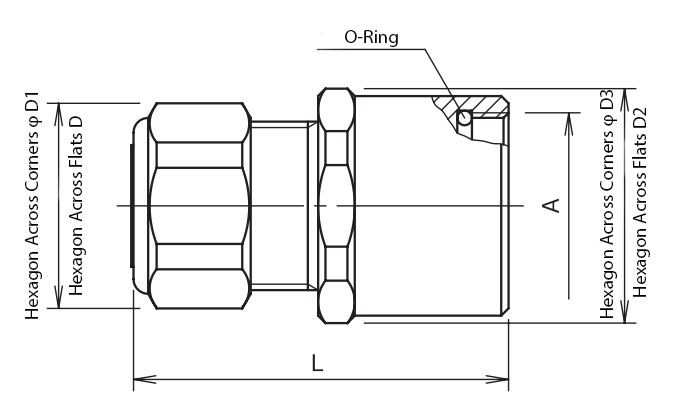

Designation	Cable O.D. Range φ	American Unified Thread A	Unfastened Length L	Across Flats D	Across Corners D1	Across Corners D2	Across Corners D3	Mass (g)	Pcs/Box
YSO-10- 5~8	Cable O.D. Range φ	American Unified Thread A	φ 4 ~ 8.3	9/16-24UNEF-2B	43	23	25	Mass (g)	Pcs/Box	24	26	66	35
YSO-12- 5~8	φ 4 ~ 8.3	11/16-24UNEF-2B	24	26	43			77					35
YSO-14- 5~8	φ 4 ~ 8.3	3/4 -20UNEF-2B	44	26	28			77	30
YSO-14- 9~11	φ 7 ~ 11.3	3/4 -20UNEF-2B	44	26	28			76	30
YSO-18- 5~8	φ 4 ~ 8.3	1 -20UNEF-2B	50	26	28	30	32	116	20
YSO-18- 9~11	φ 7 ~ 11.3			26	28			117
YSO-18- 12~14	φ 10 ~ 14.5			26	28			118
YSO-18- 15~17	φ 13 ~ 17.5			30	32			124
YSO-20- 9~11	φ 7 ~ 11.3	1 1/8 -18UNEF-2B	50	23	25	36	38	132	16
YSO-20- 12~14	φ 10 ~ 14.5	1 1/8 -18UNEF-2B	50	26	28	36	38	134	16
YSO-22- 9~11	φ 7 ~ 11.3	1 1/4 -18UNEF-2B	51	23	25	38	42	150	12
YSO-22- 12~14	φ 10 ~ 14.5			26	28			152
YSO-22- 15~17	φ 13 ~ 17.5			30	32			160
YSO-24-12~14	φ 10 ~ 14.5	1 3/8 -18UNEF-2B		26	28	41	43	176	10
YSO-28-12~14	φ 10 ~ 14.5	1 5/8 -18UNEF-2B		26	28	50	54	230	7
YSO-28- 15~17	φ 13 ~ 17.5	1 5/8 -18UNEF-2B		30	32	50	54	236	7
Material	Body: Brass Rod
