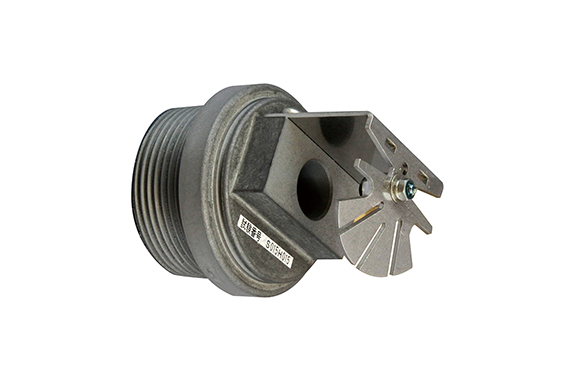

Yamato Protec SHS172002 Water Discharge Type Sprinkler Head
Manufacturer: Yamato Protec Corporation
Model: SHS172002
Application
This water-spraying head mounts on the ceiling of high-ceilinged areas. In conjunction with fire detectors and other devices, it covers a wide area of the protected zone and extinguishes fires quickly with a powerful stream of water
| type | Fixed head (small head) |
|---|---|
| Model | SHS172002 |
| Test number | S015H015 |
| Standard discharge pressure and discharge rate | 0.20 MPa – 170 L/min |
| Operating water discharge pressure and discharge volume | 0.20MPa～0.45MPa 170～255L/min |
| Effective water discharge range (H is the mounting height) | 3m ≤ H ≤ 5m: 25.2 m² 5m ≤ H ≤ 12m: 33.2 m² |
| Mounting angle | horizontal |
| mass | 0.25kg |
