Yamato Protec Water Mist Fire Extinguishing System Microfog Product Overview

Manufacturer: Yamato Protec Corporation

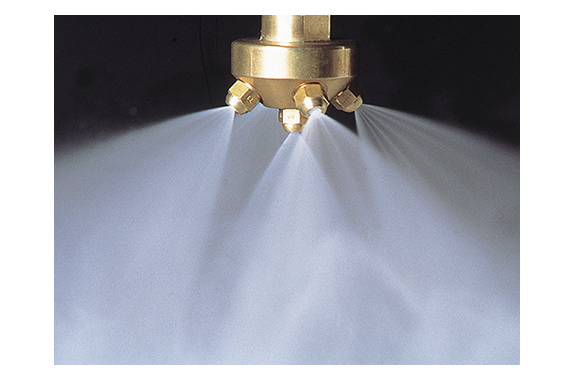

Model: Water Mist Fire Extinguishing System Microfog

Application

“Microfog” is a fire extinguishing system that combines the high cooling performance of sprinkler systems with the suffocation performance of gas-based fire extinguishing systems, making it safe and clean for people.

Features of Microfog

Achieving a high cooling effect, it rapidly lowers the temperature.
A powerful suffocation effect is also delivered to smother the flames.
By blocking heat radiation, it successfully prevents the spread of fire.
Safe and secure for both humans and the environment, this solution offers total peace of mind.

Water mist fire extinguishing system Microfog product installation targets

Generator Room
Substation equipment
Electrical room
Boiler room
machine room
Oil tank room
Paint booth
Mechanical parking
Ship’s cabins and engine room
Cable tunnels (common utility tunnels), etc.

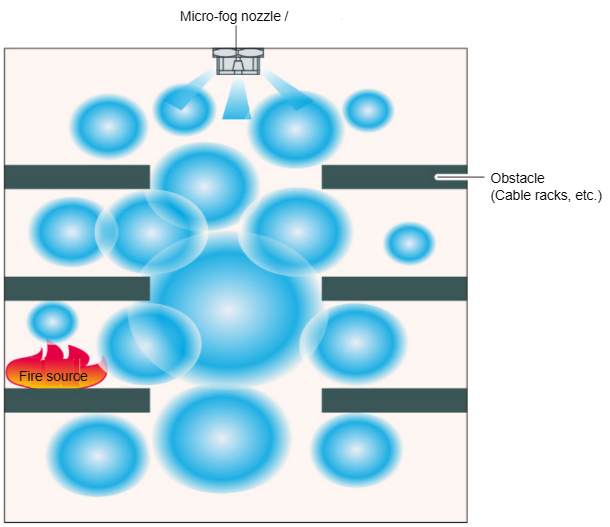

Image of the firefighting process using microfog

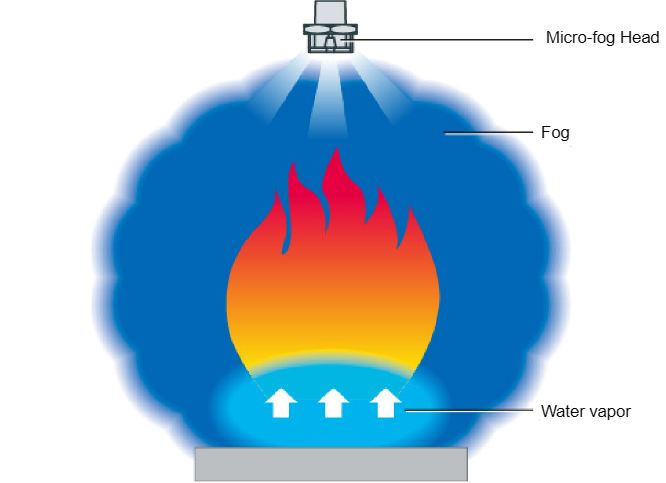

Fire suppression and extinguishing effects of microfog
By atomizing water, the increased surface area of the fog causes it to evaporate and vaporize, enhancing the cooling effect. Simultaneously, the resulting water vapor creates a suffocating effect, extinguishing the fire.

Part 1

Microfog activated
Part 2

It engulfed the flames and quickly filled the room
Part 3

The fire suppression and extinguishing effects of microfog, Part 3

Firefighting

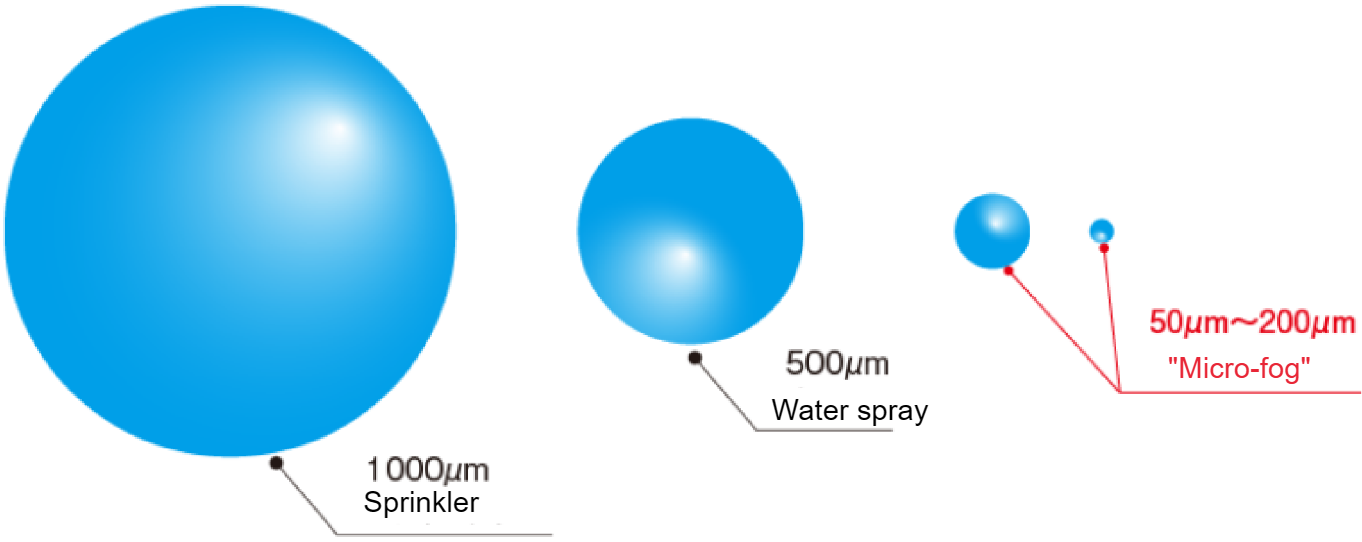

Microfog spray particles

When water is atomized, its surface area increases, making it easier to evaporate. This enhances the cooling effect, and the resulting water vapor creates a suffocating effect, thereby extinguishing the fire. The water particles in “Microfog” have a diameter of approximately 150 μm (50-200 μm), and fog in this range exhibits excellent fire extinguishing and suppression effects.
