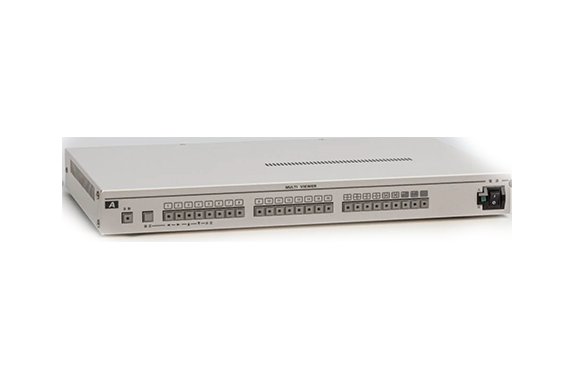

YK AMV-1600 Analog HD16 Input DVI Output Multi-Viewer

Manufacturer: YK Wireless Co., Ltd.
Model: AMV-1600

Features

Screen splitter made by Artics, a Japanese manufacturer specializing in image processing equipment
Professional 16-split display capable of single screen/4/9/13/16-split display
Supports analog HD inputs AHD/HD-TVI/HD-CVI
Japanese menu display
Supports CVBS input

Specifications

Video Format	Supports AHD, HD-TVI, HD-CVI, NTSC formats (mixing is possible) Set in the “Video Format” menu 1920 x 1080 (30p) 1280 x 720 (30p) Set the size in the “Video Format” menu (except NTSC)
Camera video input	16 inputs (with loop-through) BNC terminal (75Ω termination OFF when loop-through is used)
DVI video output	1920 x 1080 (59.94p) 1 system DVI-D connector (inch screw #4-40UNC) DVI 1.0 compliant * Audio data is not output
Main output screen display	Split screen can be arranged in any channel Single screen 1 to 16 channels 4-split screen 4A, 4B, 4C, 4D Equal 4-split screen 9-split screen 9A, 9B equal 9-split 13-split screen 13A, 13B Irregular 13-split screen Top left: Large screen 1 channel, Top right to bottom left: Small screen 12 channels 16-split screen,　16 equal splits Automatic switching operation: Single screen 1 to 16 only/Each split screen only/Mix each screen display time: 0 to 99 (seconds) 0 (seconds) is skip
External control signal input/output	D-sub 37 pin (female) Alarm/Remote selectable from menu 16 alarm inputs (channels 1 to 16) Non-voltage make/break contacts 27 remote inputs (automatic switching, single screen, split screen, 30-second correction) No-voltage make contact Alarm output 1 system Open collector DC12V 100mA or less (when alarm is activated, when video loss occurs, when internal fan stops)
RS-232C	RXD, TXD, GND RS-232C signal standard compliant　 D-Sub 9-pin male (inch screw #4-40UNC)
RS-485	RJ-11 x 2 (loop-through) RS-485 signal standard compliant (Half Duplex)　 modular jack
Alarm function	Single screen display of alarm input channel Signal output during alarm operation Alarm hold mode: INTERNAL / EXTERNAL Detection contact: MAKE / BREAK INT. Hold time: Variable from approx. 3 to 999 seconds Operation after alarm release: Return / As is Alarm screen display: ON / OFF
Video Loss Function	Video loss channel on-screen display Detection/non-detection setting for each channel Signal output during video loss ON/OFF Screen background color setting Black/Blue
Title display function	Up to 10 full-width characters can be entered for each channel. Katakana, English, numbers, and symbols can be entered in the menu. Kanji and Hiragana can be entered using dedicated software. Fixed display at the bottom center of each channel ‘s video. Set display/hide. Select large (46 x 46) or small (30 x 30) character size for single screen and each split screen. Single screen and each split screen. 13-split and 16-split screens are fixed at small (30 x 30). Date and time, message character size are also linked.
NTSC Aspect Ratio	Set 4:3/FULL
Date and time display function	Year, month, day, hour, minute, second Upper center of screen Set display/hide Monthly difference within 30 seconds
Split Screen Borderline	OFF / WHITE / GRAY / BLACK
Insertion character display position	Variable in 16 steps in the left and right direction and 16 steps in the up and down direction
Button Lock Function	Locks the single screen 1-16/split screen/automatic switching display and prohibits button operations
Operating temperature and humidity	0 to 40°C RH20 to 90% (no condensation)
Power supply voltage/power consumption	AC100V 50/60Hz approx. 21W
AC Input Cable Length	Approximately 1.7m
External dimensions	420(W) x 251(D) x 44(H) [mm] (excluding rubber feet and protrusions)
Case color	Ivory
mass	Approx. 2.9 kg
accessories	operating instructions
Sold separately	Dedicated remote controller RMC-160A 19-inch rack mount bracket (JIS/EIA)
