YK Wireless Co.Ltd

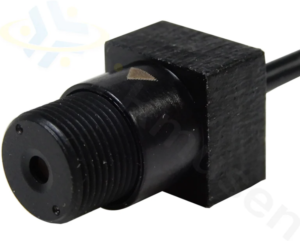

YK CM-D7 Ultra-Compact CMOS Camera With a 9mm Square Cylindrical Pinhole
Manufacturer: YK Wireless Co., Ltd.
Model: CM-D7
Features
- Ultra-small camera with a 9mm square size
- Equipped with a 390,000 pixel CMOS image sensor
- Supports CVBS output
- Adopts a lens with adjustable focus
Specifications
| Product Name | CM-D7 |
| Image sensor | 1/4 inch color CMOS image sensor |
| Signaling | NTSC |
| Effective pixels | 712×552 |
| Horizontal resolution | 480 TV lines |
| Minimum illumination | 0.3Lux / F1.2 |
| Shutter Speed | 1/60～1/200,000 |
| Video Output | 1Vp-p, 75Ω composite |
| lens | f4.0mm |
| Angle of View | 48 degrees |
| power supply | DC9V~DC12V / 80mA (maximum) |
| External dimensions | 9(width) x 9(height) x 16(depth) mm |
| Weight (excluding cord) | Approx. 31g |

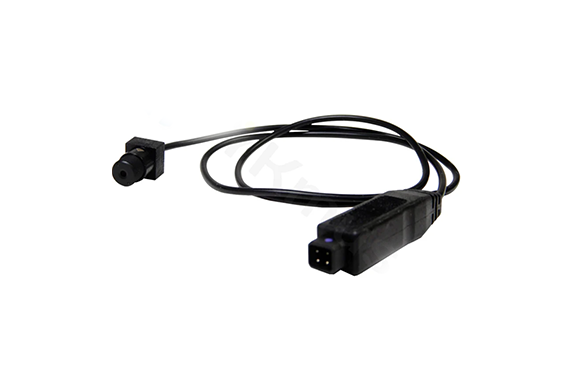

| What’s in the box | CM-D7 main unit Branch cable Instruction manual Product warranty (warranty period: 6 months) |
