YK Wireless Co.Ltd
YK CP-M1 AHD Ultra-Compact Camera
Manufacturer: YK Wireless Co., Ltd.
Model: CP-M1
Features
- Supports ultra-high resolution shooting of 5MP (2592 x 1944) and 4MP (2560 x 1440)
- Equipped with electronic Day & Night function
- Supports AHD/HD-TVI/HD-CVI/CVBS (analog video) output
- Supports M12 mini lens replacement
Specifications
| Image Sensor | 1/2.7 inch 5 megapixel CMOS image sensor |
| Scanning Method | Progressive Scan |
| resolution | AHD: 4MP (1440P) or 5MP (1920P) HD-TVI/HDCVI: 4MP (1440P) CVBS: 950TV lines (Analog video output) |
| Minimum illumination | Color: 0.5 Lux / Black and White: 0.1 Lux |
| Signal to Noise Ratio | 50dB |
| Video Output | AHD (4MP) 16:9 / AHD (5MP)・CVBS 4:3 |
| lens | f3.6mm megapixel lens (compatible with M12 mini lens) |
| White Balance | ATW/AWC-SET |
| Shutter Speed | AUTO/FLK (NTSC: 1/30 to 1/50,000 seconds PAL: 1/25 to 1/50,000 seconds) |
| Digital Slow Shutter | AUTO(x6)/x2, x4, x6, x8, x10, x20, x25, x30 |
| Day & Night | AUTO / COLOR / BW / EXT |
| Motion detection notification | OFF / ON |
| 2D-3DNR | OFF / LOW / MIDDLE / HIGH |
| Backlight Compensation | OFF / BLC |
| Digital Effects | OFF / MIRROR / V-FLIP / ROTATION |
| RT/NRT | ON / OFF |
| D-WDR | ON / OFF |
| language | A total of 11 languages to choose from, including JPN/ENG |
| OSD | Settings can be changed using the included OSD controller |
| power supply | DC12V |
| Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～60℃ |
| size | 25×25×28(mm) |
| weight | Approx. 56g (including cable) |

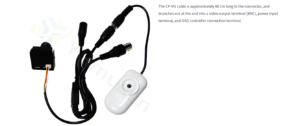

| What’s in the box | CP-M1 camera body CP-M1/CP-M2 dedicated video cable Camera bracket (with screws) BNCP-RCAJ DC12V-1A switching AC adapter OSD controller Instruction manual (product warranty period 1 year) |
