YK DMV-900 9-screen Splitter Multi-Viewer

Manufacturer: YK Wireless Co., Ltd.
Model: DMV-900

Features

Screen splitter made by Artics, a Japanese manufacturer specializing in image processing equipment
Professional 9-split display with single screen, 4-split, or 9-split display
Japanese menu display
Supports CVBS input

Specifications

Video Format	NTSC compliant
Camera video input	9 inputs (with loop-through) BNC terminal VBS 1.0Vp-p 75Ω termination Unbalanced (75Ω termination OFF when loop-through is used)
Monitor video output 1	1 system BNC terminal VBS 1.0Vp-p 75Ω termination Unbalanced　 1/60 (sec) refresh Noiseless Single screen 1 to 9ch. 4-split A (1 to 4ch.) 4-split B (5 to 8ch.) 4-split C (9ch., 1 to 3ch.) 9-split A (1 to 9ch.) Automatic switching (single screen only/split screen only/mix) Switching by front button Split screen can be arranged arbitrarily for channels
Monitor video output 2	1 system, BNC terminal, VBS 1.0Vp-p, 75Ω termination, unbalanced, 1/60 (sec) refresh, noiseless, single screen 1 to 9ch., 4-split A (1 to 4ch.), 4-split B (5 to 8ch.), 4-split C (9ch. only displayed in upper left) , automatic switching (single screen only/split screen only/mix) , set by menu, fixed output
Automatic switching (auto sequence)	Automatic switching of channels 1 to 9 only Automatic switching of split screens (4A, 4B, 4C, 9) only Mix of single screen and split screen Display time of 0 to 99 seconds can be set for each screen
Image size	Normal/Large
Aspect Ratio	4:3 / 16:9
Control signal input/output terminal	D-Sub 25 pin (inch screw #4-40UNC) Alarm/Remote selectable from menu 9 alarm inputs (channels 1 to 9) Non-voltage make/break contacts Remote input 11 systems (automatic switching, each single screen, each split screen) No-voltage make contact No-voltage make contact Alarm output 1 system Open collector DC12V 100mA or less Video loss output 1 system Open collector DC12V 100mA or less 1 system synchronous output 0.286Vp-p 75Ω termination unbalanced
Alarm function	Single screen display of alarm input channel Alarm hold mode: INT./EXT. Detection contact: Make/Break INT. hold time: Variable from approx. 3 to 999 seconds Operation after alarm release: Return/As is Alarm display: ON/OFF History: Records up to 100 channels and dates
Video Loss Function	Video loss Channel caption display Detection/non-detection setting for each channel History: Records channel and date and time for up to 100 cases
RS-232C	RXD, TXD, GND RS-232C signal standard compliant　 D-Sub 9-pin male (inch screw #4-40UNC)
RS-485	RJ-11 x 2 (loop-through)　 RS-485 signal standard compliant (Half Duplex) Modular jack
Title Display	Up to 8 characters per channel English, numbers, symbols, katakana Display position variable for single screen only 4,9 split screen display position fixed at bottom center
Split Screen Borderline	OFF/WHITE/BLACK
Button lock function	Locks the display of single screen 1 to 9/split screen/automatic switching and prohibits button operation. *Function added after serial number 21150881
Operating temperature and humidity	0 to 40°C RH20 to 90% (no condensation)
Power supply voltage/power consumption	AC100V 50/60Hz approx. 15W
AC Input Cable Length	Approximately 1.7m

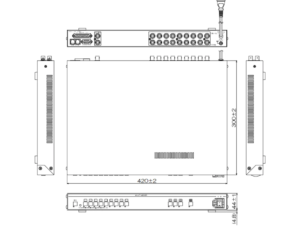

External dimensions	420(W) x 300(D) x 44(H) [mm] (excluding rubber feet and protrusions)
Case color	Ivory
mass	Approx. 3.5 kg
accessories	operating instructions
Sold separately	Dedicated remote controller RMC-900 D-sub connector/terminal block converter DTC-P25 19-inch rack mount bracket (JIS/EIA)
