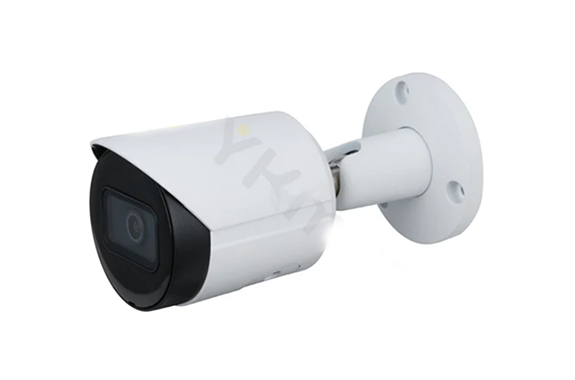

YK IPC-HFW2841SP-S-0280B Outdoor Network Camera
Manufacturer: YK Wireless Co., Ltd.
Model: IPC-HFW2841SP-S-0280B
Features
- 8 megapixel 1/2.7 inch CMOS image sensor. High image quality even in low light.
- Output up to 8 megapixels (3840 x 2160) 20fps, 2688 x 1520 25/30fps
- H.265 codec provides high compression and ultra-low bitrate
- Built-in IR LED with a maximum irradiation distance of 30m
- Flexible coding of ROI and SMART H.264+/H.265+ allows for adaptability to various bandwidth and storage environments
- Supports various surveillance scenes, including rotation mode, WDR, 3D noise reduction, HLC, BLC, digital watermarking, etc.
- Intrusion detection, Tripwire as an intelligent monitoring function (two functions support classification and accurate detection of vehicles and people)
- Anomaly detection functions: Motion detection, video tampering, audio detection, SD card (not inserted, full, card error), network disconnection, IP address conflict, unauthorized access, voltage detection
Specifications
| camera | Image Sensor | 1/2.7 inch CMOS |
| Maximum resolution | 3840(H) x 2160(V) | |
| ROM | 128MB | |
| RAM | 256MB | |
| Scanning System | progressive | |
| Electronic Shutter Speed | Automatic / Manual 1/3 seconds to 1/100,000 seconds | |
| Minimum illumination | Color: 0.009 lux (F2.0, 30IRE) Black and white: 0.0009 lux (F2.0, 30IRE) 0 lux (illuminator on) | |
| Signal to Noise Ratio | >56dB | |
| Beam Distance | 30m (infrared) | |
| Irradiator On/Off Control | Automatic/Manual | |
| Number of irradiators installed | 3 (IR LED) | |
| Range of motion | [Horizontal] 0 to 360° [Vertical] 0 to 90° [Rotation] 0 to 360° | |
| lens | Lens type | Prime Lenses |
| mount | M12 | |
| Focal length | 2.8mm | |
| Maximum aperture | F2.0 | |
| Angle of View | Horizontal: 106° Vertical: 56° Diagonal: 125° | |
| Aperture Control | Fixation | |
| Close Focus Distance | 1.3 meters | |
| Dori Distance | D: 88.0 m O: 35.2 m R: 17.6 m I: 8.8 m | |
| Advanced Features | IVS (Boundary Protection) | Intrusion Detection, Tripwire (supports classification and accurate detection of vehicles and humans) |
| Smart Search | Works with Smart NVR to improve the performance of advanced search, event extraction, and event video merging. |

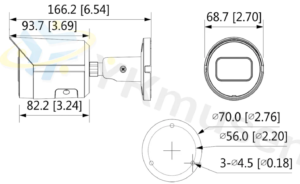

Dimensions
