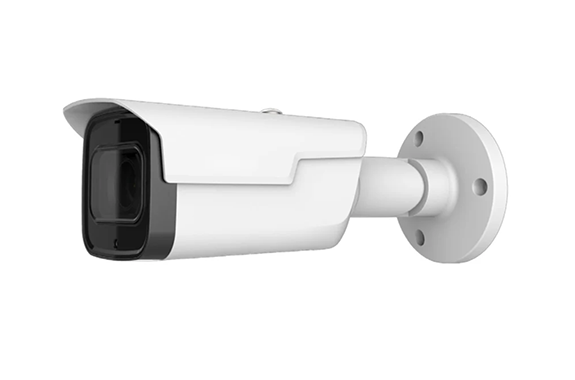

YK IPC-HFW2841TP-ZS-27135 Outdoor Network Camera

Manufacturer: YK Wireless Co., Ltd.
Model: IPC-HFW2841TP-ZS-27135

Features

8 megapixel 1/2.7 inch CMOS image sensor. High image quality even in low light.
Up to 8MP (3840 x 2160) 20fps and 2688 x 1520 25/30fps output
H.265 codec provides high compression and ultra-low bitrate
Built-in IR LED with a maximum irradiation distance of 60m
Flexible coding of ROI and SMART H.264+/H.265+ allows for adaptability to various bandwidth and storage environments
Supports various surveillance scenes, including rotation mode, WDR, 3D noise reduction, HLC, BLC, digital watermarking, etc.
Intrusion detection, Tripwire as an intelligent monitoring function (two functions support classification and accurate detection of vehicles and people)
Supports microSD cards up to 256GB
Built-in microphone
Powered by DC12V or PoE
IP67 protection rating
SMD Plus

Specifications

camera	Image Sensor	1/2.7 inch CMOS
	Maximum resolution	3840(H)×2160(V)
	ROM	128MB
	RAM	256MB
	Scanning System	progressive
	Electronic Shutter Speed	Automatic / Manual 1/3 seconds to 1/100,000 seconds
	Minimum illumination	Color: 0.008 lux (F1.5, 30IRE) Black and white: 0.0008 lux (F1.5, 30IRE) 0 lux (illuminator on)
	Signal to Noise Ratio	>56dB
	Beam Distance	Up to 60m (IR LED)
	Irradiator On/Off Control	Automatic/Manual
	Number of irradiators installed	4 (IR LEDs)
	Range of motion	Horizontal: 0° to 360° Vertical: 0° to 90° Rotation: 0° to 360°
lens	Lens type	Motorized varifocal
	mount	φ14
	Focal length	2.7mm to 13.5mm
	Maximum aperture	F1.5
	Angle of View	Horizontal: 113° to 31° Vertical: 58° to 18° Diagonal: 138° to 36°
	Aperture Control	Fixation
	Close Focus Distance	0.8m
	Dori Distance	[Wide angle] D: 85.3m O: 34.1m R: 17.1m I: 8.5m [Telephoto] D: 280.0m O: 112.0m R: 56.0m I: 28.0m
Advanced Features	IVS (Boundary Protection)	Intrusion Detection, Tripwire (supports classification and accurate detection of vehicles and humans)
	Smart Search	Works with Smart NVR to improve the performance of advanced search, event extraction, and event video merging.
picture	Video Compression	H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)
	Smart Codec	Smart H.265+, Smart H.264+
	Frame rate	Main stream: 1–20 fps (3840 × 2160) / 1–25/30 fps (2688 × 1520) Sub-stream: 1–25 fps (704 × 576) / 1–30 fps (704 × 480) *The above is the maximum frame rate for each stream. In the case of multiple streams, the value depends on the total encoding capacity.
	Stream Function	2 Stream
	resolution	3840 × 2160, 3072 × 2048, 3072 × 1728, 2880 × 1620, 2688 × 1520, 3M (2048 × 1536), 2304 × 1296 (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
	Bitrate Control	CBR/VBR
	Video Bitrate	H.264: 32 kbps to 8192 kbps H.265: 12 kbps to 8192 kbps
	Day & Night Function	Auto (ICR)/Color/Black and White
	BLC (Backlight Compensation)	correspondence
	HLC (Highlight Compensation)	correspondence
	Wide Dynamic Range	120dB
	White Balance	Automatic / Natural / Street Light / Outdoor / Manual / Regional Custom
	Gain Control	Automatic/Manual
	Noise Reduction	3D NR
	Motion detection	Off/On (4 areas, rectangular)
	Region of Interest (RoI)	Supported (4 areas)
	Smart Illumination	correspondence
	Flip	0° / 90° / 180° / 270° *90°/270° supported for resolutions less than 2688 x 1520
	Mirror (invert)	correspondence
	Privacy Mask	4 Area
audio	Built-in microphone	correspondence
	Audio Compression	G.711a; G.711Mu; PCM; G.726
alarm	Alarm Event	SD card (no insertion, insufficient free space, error), network disconnection, IP address conflict, unauthorized access, motion detection, video tampering, tripwire, intrusion detection, audio detection, voltage detection, out-of-focus detection, SMD, security anomaly
