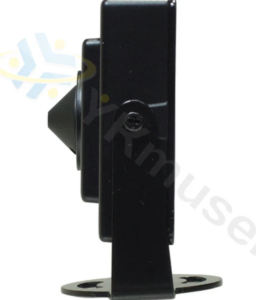

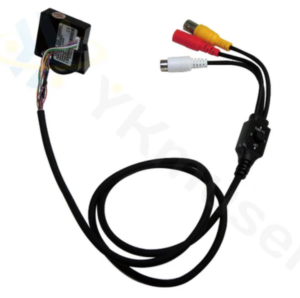

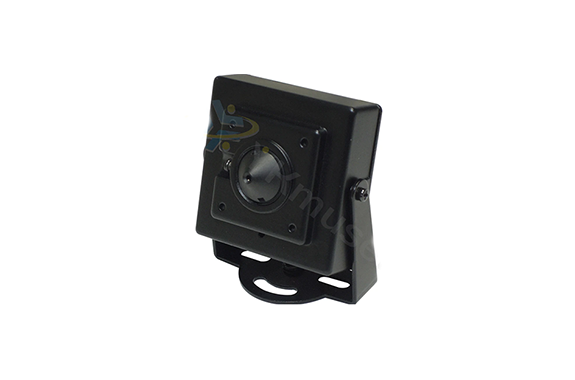

YK ITC-409HM(P) Effio-E equipped, 480,000 Pixel, Compact Pinhole Camera With Microphone
Manufacturer: YK Wireless Co., Ltd.
Model: ITC-409HM(P)
Features
- Compact camera with SONY CCD image sensor
- Uses pinhole lenses for high confidentiality
- 480,000 pixels/CVBS output type camera
- Built-in audio microphone
Specifications
| Image Sensor | 1/3 inch SONY CCD |
| Effective pixels | Approximately 480,000 pixels (976H x 494V) |
| Horizontal resolution | 700 TV lines (black and white) |
| Synchronous System | Internal Sync |
| Signal to Noise Ratio | More than 48 dB |
| Shutter Speed | 1/60 to 1/100,000 seconds |
| gamma | 0.45 |
| Minimum illumination | 0.01 Lux |
| lens | 3.7mm / F2.0 *Pinhole lens |
| OSD | Equipped with Effio-E |
| Video Output | VBS 1.0Vp-p 75Ω BNC |
| power supply | DC12V |
| Power Consumption | Maximum 100mA |
| Operating temperature | -10 to 50°C |
| Operating Humidity | 80% RH or less |
| size | 36(W) x 36(H) x 13(D)mm (excluding lens) |
| weight | Approx. 42g |
| Set contents | ITC-409HM(P) Camera body AC adapter Mounting stand BNCP-RCAJ Instruction manual (Warranty card/warranty period 1 year) |
