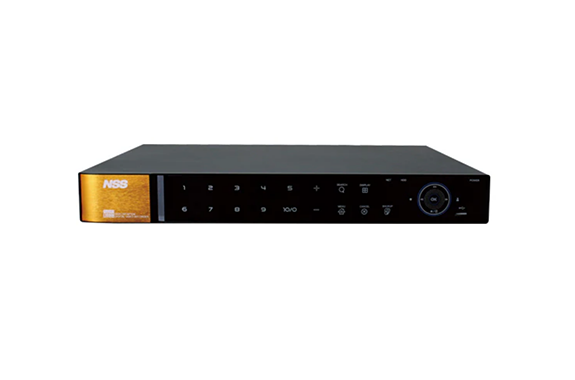

YK NSD5008AHD-H 8ch Standalone AHD2.0/HD-TVI Hybrid Security DVR
Manufacturer: YK Wireless Co., Ltd.
Model: NSD5008AHD-H
Features
- All channels support Full HD (1080P) recording
- AHD/HD-TVI/analog cameras can manage with one DVR (all channels are automatically recognize)
- Supports DDNS with your own domain (dvrhost.com)
- Even in an environment where the NSD3000AHD and NSD7000AHD-H series are mixed, they can manage together with the same CMS (EMS2).
- Can operate with a remote control or mouse
- You can watch live footage on your iPhone, iPad, or Android phone (Smart Phone APP: mobileCMS)
- Supports RAID1 (mirroring), allowing you to protect recorded data (some specifications are subject to restrictions)
Specifications
| OS | Embedded Linux |
| Video Compression Format | H.264 |
| Video Input | 8 channels (BNC) |
| Video Output | HDMI x 1, VGA x 1 (1920 x 1080p) |
| Recording Performance | 1920×1080: 240fps (when using RAID: 120fps) |
| Standard built-in HDD capacity | 2TB (can be expanded up to 16TB with options) |
| Number of hard disks that can be installed | 3.5 inches x 2 |
| RAID Levels | RAID1 (some specifications are subject to restrictions) |
| Display Pattern | Full screen, 4-split, 9-split, uneven split (6/7/8) |
| Recording Mode | Normal, Schedule, Motion, Alarm |
| Alarm Recording | Pre-alarm: 1 to 5 seconds, Post-alarm: 5 to 300 seconds |
| Digital zoom | Up to 8x |
| Playback search mode | Time search, event search (alarm, motion, video loss, motion area) |
| Playback Controls | Play/reverse, fast forward/rewind (x2, x4, x8, x16), pause, frame forward/frame rewind *Fast forward/rewind cannot be used when using RAID. |
| Backup Devices | USB memory, external HDD, network |
| Backup Data Format | Dedicated format, AVI |
| USB port | 1x front, 1x rear |
| External Storage | e-SATA x 1 |
| audio | Input: 8 x RCA, Output: 1 x RCA |
| I/O | RS485, 8 alarm inputs/1 alarm output |
| Ethernet | 10/100/1000Base-T |
| Network Protocols | TCP/IP, SMTP, DHCP, DDNS, UPnP, NTP, FTP |
| Remote Client | PC client: Dedicated software (EMS2: Windows), Browser (Internet Explorer), Mobile client: iOS, Android (mobileCMS) |
| Maximum Remote Logins | 10 |
| controller | Front touch panel, mouse, infrared remote control |
| power supply | DC12V/5A |
| Maximum power consumption | Maximum 37.2W |
| Operating environment | 5-40 degrees, 30-80% |
| External dimensions | 380 (width) x 46.8 (height) x 320 (depth) mm |
| weight | 3330g |
| What’s in the box | NSD5008AHD-H AC adapter Infrared remote control USB optical mouse CD-ROM Instruction manual (3-year product warranty) |

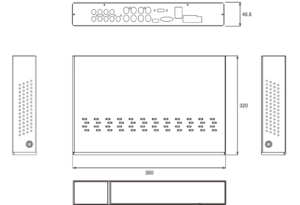

Dimensions
