YK Wireless Co.Ltd

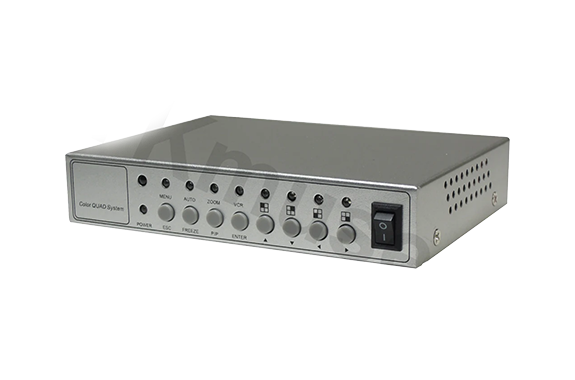

YK RYK-9017 Color Screen 4-way Splitter With Remote Control
Manufacturer: YK Wireless Co., Ltd.
Model: RYK-9017
Features
- Screen splitter for CVBS (analog) cameras
- Remote control possible using infrared remote control
- Equipped with switcher function
- A time generator function that can display date and time
- Equipped with digital zoom function
- Picture-in-Picture (PinP) function
Specifications
| Video System | NTSC/PAL |
| Video input terminal | 4 inputs (BNC terminals) |
| Video Input | 1.0Vp-p composite, 75Ω |
| Video Output | 1 output (BNC terminal) |
| Screen Display | Full screen, 4-split screen, PIP, switching screen |
| Channel Name | Can be created |
| resolution | 720×480 |
| Reload image | 60 fields/second |
| zoom | 2×2 Zoom |
| Time display | Yes |
| Screen switching time | 0 to 99 seconds |
| Alarm display time | 0 to 99 seconds |
| 4-split video output | 1 output (BNC terminal) |
| Event Log List | Up to 60 events (motion detection, video loss) |
| Key lock function | Yes |
| size | 140(W) x 26(H) x 100(D)mm (excluding protrusions) |
| mass | Approx. 340g (body only) |
| power supply | 12V 1A |
| Operating environment | -10℃～50℃ |
| What’s in the box | RYK-9017 Main unit Infrared remote control DC12V-AC adapter Instruction manual |
| Warranty period | 1 year |

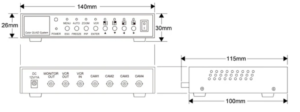

Dimensions
