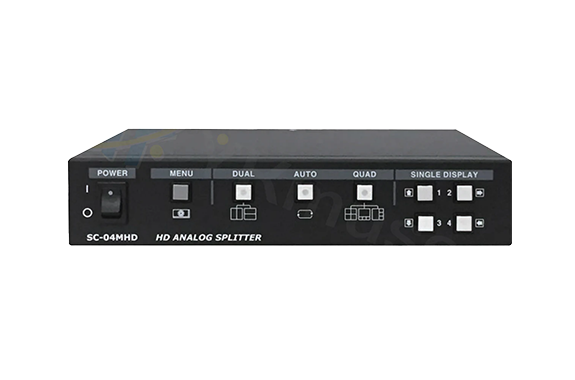

YK SC-04MHD 4ch Multi-Format Compatible Screen Splitter
Manufacturer: YK Wireless Co., Ltd.
Model: SC-04MHD
Features
- Supports multi-format input of AHD/HD-TVI/HD-CVI/CVBS
- Supports full HD output of 1920 x 1080
- Equipped with automatic sequential conversion function (auto sequence)
- A time generator function that can display date and time
- Equipped with camera title function for each input camera
- Through-out output terminals for each channel
Specifications
| Model number | SC-04MHD | |
| Video input terminal | 4ch(BNC-J) | |
| Input Signal | AHD / TVI / CVI / CVBS *Automatic recognition | |
| Throughout | 4ch(BNC-J) | |
| Monitor Output | Display Frame | Real-time display |

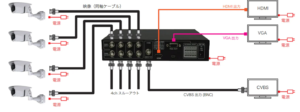

| Output terminal | HDMI x 1ch / VGA x 1ch / BNC x 1ch (CVBS) | |
| Display resolution | HDMI: 1920x1080p / 1920x1080i / 1280x720p VGA: 1920×1080 / 1600×1200 / 1360×768 / 1027×768 BNC: 720×480 | |
| How to display | Single screen/2-split (vertical/horizontal)/4-split (3 patterns)/ Digital zoom/Sequence | |
| OSD Display | Japanese | |
| Terminal Blocks | Sensor Input | 4ch (NO/NC) |
| Alarm/Relay Input | 1ch (NO/NC) | |
| Power Output | DC12V 300mA | |
| Communication Interface | RS-485 | |
| Mini USB | For firmware updates | |
| Power Consumption | Approximately 6W | |
| power supply | AC100V 50/60Hz (supplied from AC adapter DC12V 1A) | |
| operation | Main unit buttons | |
| Operating environment | Operating ambient temperature: 0℃ to 50℃ Operating ambient humidity: 0% to 80% (no condensation) | |
| External dimensions | 220(W) x 44(H) x 191(D)mm (excluding protrusions) | |
| weight | Approx. 2kg | |
| What’s in the box | SC-04MHD unit AC adapter Rack mount bracket Rubber feet Screws Instruction manual | |
| Product warranty period | 1 year | |
