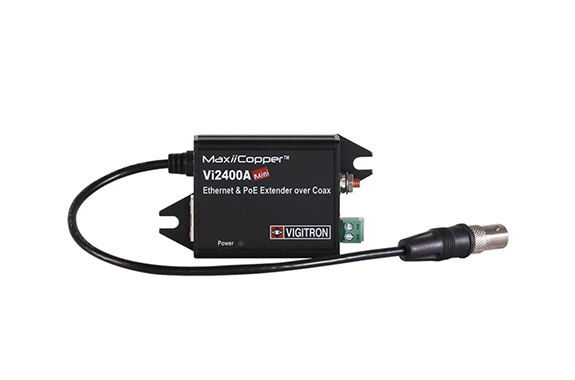

YK Vi2400A Coaxial LAN Converter MaxiiCopper (PoE Extender)

Manufacturer: YK Wireless Co., Ltd.
Model: Vi2400A

Features

  • Long distance transmission via coaxial cable
  • Supports PoE/PoE+ power supply depending on the parent unit
  • Noise-resistant and highly reliable communication possible
  • Supports high bandwidth transmission including 4K UHD cameras
  • Operating temperature: -40℃ to 75℃

Specifications

Product NameVi2400A [For handset only]
Transmission methodManufacturer’s own method
Transmission speed*110/100Mbps
Frequency band used100BASE-TXApproximately 0 to 125MHz
10BASE-TApproximately 0 to 12.5MHz
Maximum Frame Length5063bytes (including VLAN Tag)
interface10/100BASE-TX
Port		■RJ-45 x1
, 10BASE-T (full duplex)/100BASE-TX (full duplex)
, auto MDI/MDI-X compatible
Coaxial Extended
Ethernet Port		■BNC x1
・10BASE-T (full duplex)/100BASE-TX (full duplex)
*Automatic recognition
Settings※3DIP SwitchesNone (fixed to Master and Remote)
Slide Switch
Impedance75 ohms
Connectable PD terminal (when PoE is extended)25.5W or less (IEEE802.3af/at)
Input power (with PoE extension)37W (max)
Dimensions (excluding protrusions)(W) 44 x (H) 25 x (D) 50 mm
Weight (body only)86g
Chassisaluminum
power supply・DC12V※2 (When used for LAN extension)
・PoE input (When used for PoE extension)
Power consumption (max)1.8W
Operating temperature-40 to +75°C
Operating Humidity0 to 95% (no condensation)
Storage temperature-40 to +80°C
AccreditationVCCI classA, RoHS10 substances, CE Marking, WEEE
Product warranty period3 years
accessories■Power connector x1

Dimensions
