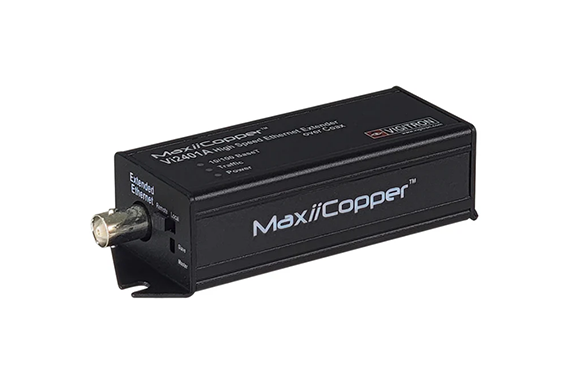

YK Vi2401A Coaxial LAN Converter MaxiiCopper (PoE Extender)
Manufacturer: YK Wireless Co., Ltd.
Model: Vi2401A
Features
- Long distance transmission via coaxial cable
- Supports PoE/PoE+ power supply depending on the parent unit
- Noise-resistant and highly reliable communication possible
- Supports high bandwidth transmission including 4K UHD cameras
- Operating temperature: -40℃ to 75℃
Specifications
| Product Name | Vi2401A [Parent unit/Child unit] | |
| Transmission method | Manufacturer’s own method | |
| Transmission speed *1 | 10/100Mbps | |
| Frequency band used | 100BASE-TX | Approximately 0 to 125MHz |
| 10BASE-T | Approximately 0 to 12.5MHz | |
| Maximum Frame Length | 5063bytes (including VLAN Tag) | |
| interface | 10/100BASE-TX Port | ■RJ-45 x1 , 10BASE-T (full duplex)/100BASE-TX (full duplex) , auto MDI/MDI-X compatible |
| Coaxial Extended Ethernet Port | ■BNC x1 ・10BASE-T (full duplex)/100BASE-TX (full duplex) *Automatic recognition | |
| Settings※3 | DIP Switches | Master/Slave |
| Slide Switch | Remote/Local | |
| Impedance | 75 ohms | |
| Connectable PD terminal (when PoE is extended) | 25.5W or less (IEEE802.3af/at) | |
| Input power (with PoE extension) | 37W (max) | |
| Dimensions (excluding protrusions) | (W) 40 x (H) 30 x (D) 95 mm | |
| Weight (body only) | 126g | |
| Chassis | aluminum | |
| power supply | ・DC12V※2 (When used for LAN extension) ・PoE input (When used for PoE extension) | |
| Power consumption (max) | 2.5W | |
| Operating temperature | -40 to +75°C | |
| Operating Humidity | 0 to 95% (no condensation) | |
| Storage temperature | -40 to +80°C | |
| Accreditation | VCCI classA, RoHS10 substances, CE Marking, WEEE | |
| Product warranty period | 3 years | |

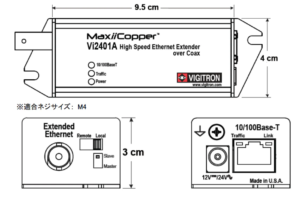

Dimensions
