YK WAT-3200 High-sensitivity 3G-SDI/HD-SDI Monochrome Camera
Manufacturer: YK Wireless Co., Ltd.
Model: WAT-3200
Features
- Equipped with a highly sensitive 1/2.8-type CMOS sensor
- Ultra-high sensitivity model with minimum subject illumination of 0.000007 Lux
- Monochrome specification specialized for low-light shooting
- DC iris and CS mount compatible
- Multi-functions can be controlled with the included wired remote control
Specifications
| Image sensor | 1/2.8-inch back-illuminated CMOS image sensor |
| Effective pixels | 1945(H) x 1097(V) |
| Cell Size | 2.9μm(H) × 2.9μm(V) |
| Imaging method | – |
| Synchronization Method | Internal Sync |
| Scanning Method | progressive |
| Video Output | 3G-SDI, HD-SDI, CVBS (analog) |
| Output Format | 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i 1080/50i, 1080/30p,1080/29.97p, 1080/25p,1080/24p, 720/60p, 720/59.94p, 720/50p, NTSC, PAL |
| resolution | Over 1000 (center of screen) |
| Minimum illumination | 0.0001 lx F1.4 (AGC HIGH=72dB, Shutter=OFF) 0.000007 lx F1.4 (AGC HIGH=72dB, Shutter=x15) |
| S/N | 50dB or more (AGC OFF=0dB, γ=1.0) |
| Feature Settings | OSD: Remote control, RS-232 (Pelco-D, Pelco-P) Communication: RS-232 (Pelco-D, Pelco-P, Visca) |
| AE mode | Electronic Shutter x2, x3, x4, x5, x6, x7, x8, x9, x10, x12, x15 (frames) 1/30, 1/60, 1/120, 1/180, 1/240, 1/300 (sec) *1 1/25, 1/50, 1/100, 1/150, 1/200, 1/250 (sec) *2 1/500, 1/1000, 1/2000, 1/5000, 1/10000 (sec) Electronic Iris 1/30 – 1/10000 (sec) *1 1/25 – 1/10000 (sec) *2 x15 – 1/10000 (sec) |
| White Balance | – |
| AGC | ON: 0 – 36dB(LOW), 0 – 50dB(MID), 0 – 72dB(HIGH) OFF: 0dB |
| M.G.C. | 0-72dB (5dB step) |
| Day/Night | – |
| Gamma Characteristics | γ ≒ USER (level adjustable) |
| Noise Reduction | 3DNR OFF/ON Level adjustable 2DNR OFF/ON Level adjustable 3D+2DNR ON Level adjustable |
| Wide Dynamic Range | WDR OFF/ON level adjustable, D-WDR OFF/ON level adjustable |
| Lens Iris | DC |
| Backlight Compensation | BLC, HSBLC |
| White Spot Correction | Up to 2046 pixels |
| Contour correction | OFF/ON level adjustable |
| Fog Correction | OFF/ON level adjustable |
| Digital zoom | ZOOM (x1.01 – x6.00), PAN/TILT |
| Privacy Mask | 8 Mask |
| Mirror Inversion | OFF, V-FLIP, H-FLIP, HV-FLIP |
| Freeze | OFF/ON |
| Motion detection | OFF/ON 4 areas can be set arbitrarily |
| Negative/positive inversion | OFF/ON |
| Interface | BNC (3G/HD-SDI), 2P connector (composite video) Power input, Auto iris, Mini DIN8P (RC-02, RS-232) |
| Power supply voltage | DC+12V±10% |
| Power Consumption | 2.52W (210mA) |
| Operating/Storage Temperature | -10 – +50℃ / -30 – +70℃ |
| Operating/Storage Humidity | 95% RH or less (no condensation) |
| Lens mount | CS mount |
| mass | Approx. 130g |
| accessories | WPDC12-R (DC plug), 2P cable, hexagonal wrench tripod adapter, RC-02 (dedicated remote control) |

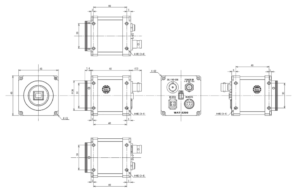

Dimensions
