YK Wireless Co.Ltd
YK YK-SC9DN Weatherproof Infrared LED Equipped 250,000 Pixel Surveillance Camera
Manufacturer: YK Wireless Co., Ltd.
Model: YK-SC9DN
Features
- Equipped with SONY 250,000 pixel CCD image sensor
- Compliant with IP66 waterproof standards, it can be installed outdoors in rainy conditions
- Equipped with an infrared spotlight

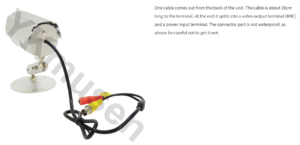

- 20m video and power cable set model
- Supports CVBS output
Specifications
| Image Sensor | 1/4 inch SONY CCD image sensor |
| Number of pixels | (H)510×(V)492 / 250,000 pixels |
| Horizontal resolution | 420 TV lines |
| Minimum illumination | 0Lux/F1.2 (IR illumination) |
| Electronic Shutter | 1/60 to 1/100,000 seconds |
| Day & Night | Color/black and white automatic switching (CDS control) |
| Infrared LED | 12 pieces |
| Infrared Wavelength | 850nm / Infrared LED emits a faint red light |
| Infrared irradiation distance | Approximately 10m |
| lens | f3.6mm / Horizontal angle of view approx. 53 degrees, vertical angle of view approx. 41 degrees |
| power supply | DC12V/100mA/Infrared irradiation: 170mA |
| Waterproof rating | IP66 |
| Dimensions (mm) | W55×H55×D68 (roof length 87) * Bracket not included |
| weight | 238g *including bracket |
| Connection terminals | Video (BNC-J) |
| What’s in the box | YK-SC9DN Main unit mounting bracket Mounting screws Instruction manual (1 year warranty) DC12V-AC adapter 20m video and power cable |
