YK YKS-HDVP series Security And Surveillance Camera Related Equipment

Manufacturer: YK Wireless Co., Ltd.
Model: YKS-HDVP

Features

Video and power wiring cables for HD-SDI and high-resolution analog HD transmission
Uses the same S-5C-FB coaxial cable as the high-definition broadcast cable
Supports Analog (CVBS), AHD, HD-TVI, HD-CVI, HD-SDI
The coating is make of a material with excellent weather resistance, so it can use for outdoor wiring.

The YKS-○○HDVP series is a video/power cable compatible with CVBS (analog), AHD, HD-TVI, and HD-CVI analog HD security cameras and surveillance cameras. The video cable uses S-5C-FB coaxial cable, the same as high-definition broadcast cables, making it the most suitable cable for transmitting HD-SDI signals and high-resolution analog HD signals. The video cable and power cable are bundle together, making wiring easy.

The cable lengths available are 5m/10m/20m/30m/40m/50m.

Model number: YKS-5HDVP	Cable length: 5m
Model number: YKS-10HDVP	Cable length: 10m
Model number: YKS-20HDVP	Cable length: 20m
Model number: YKS-30HDVP	Cable length: 30m
Model number: YKS-40HDVP	Cable length: 40m
Model number: YKS-50HDVP	Cable length: 50m

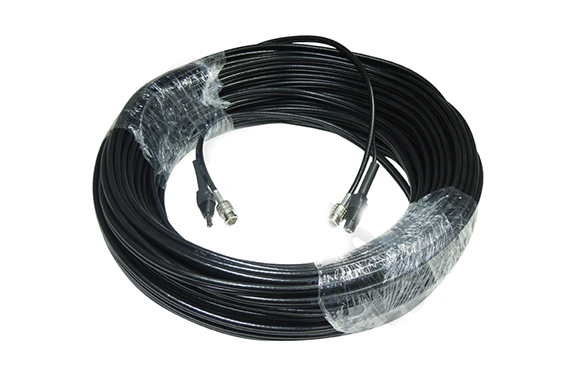

YKS-HDVP

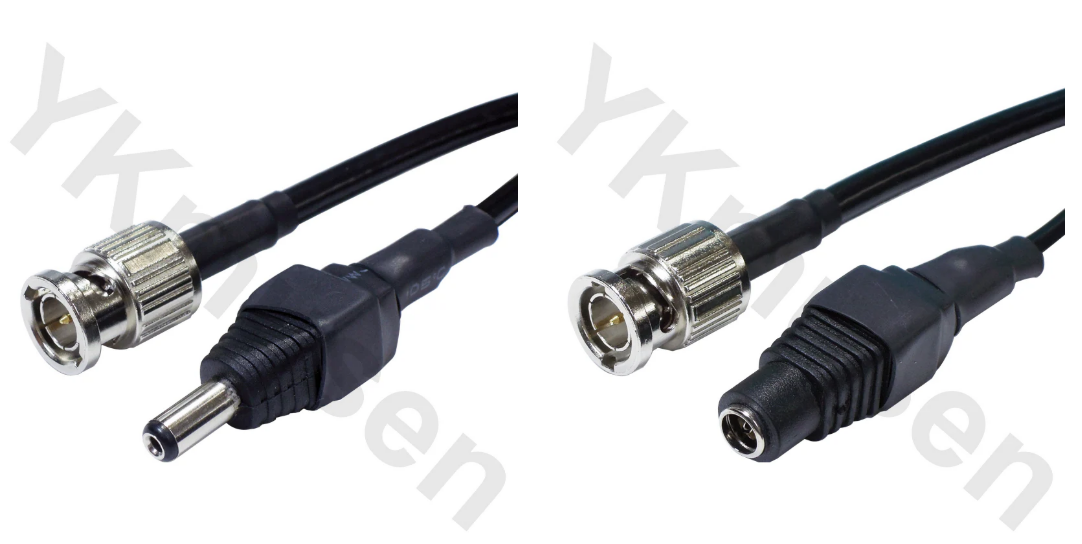

Terminals: Video terminal (BNC-P), power terminal (DC-P) / Camera side Terminals: Video terminal (BNC-P), power terminal (DC-J) / Recorder side

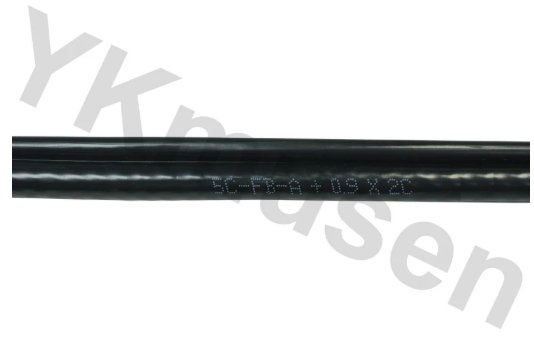

Cable section

YKS-HDVP

The cable is a video cable and a power cable attached as shown in the image. Because it is a 5C-FB cable, the cable is thick, but the signal attenuation rate is low, making it suitable for long distance wiring and transmitting high definition image quality.

Cable dimensions
Video cable (S-5C-FB): diameter 7.7mm ±0.5
Power cable: diameter 4mm ±0.2
