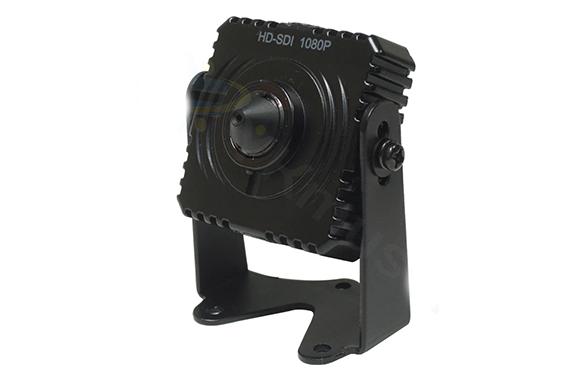

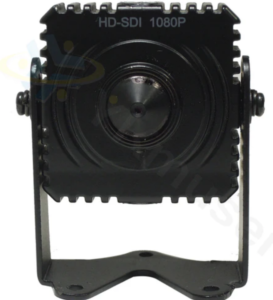

YK YKS-PNP210SDI Full HD Pinhole HD-SDI/EX-SDI Compact Camera

Manufacturer: YK Wireless Co., Ltd.
Model: YKS-PNP210SDI

YKS-PNP210SDI

Features

Image Sensor	1/3-inch 2.1 megapixel Panasonic CMOS image sensor
Total number of pixels	2,010(H) x 1,108(V), 2.2 megapixels
Effective pixels	1,944(H) x 1,092(V), 2.1 megapixels
Scanning Method	Progressive scan method
HD-SDI video output format	1.45G/s, HD-SDI Output (SMPTE 292M)
Analog video output format	1.0Vp-p 75Ω composite
Video Output Resolution	HD-SDI output: 1920×1080 (1080P) / 1280×720 (720P)
Video output terminal	BNC-J
OSD Menu	Japanese/English
Synchronization Method	Internal Sync
Signal to Noise Ratio	50dB or more (AGC OFF)
Minimum illumination	Color: 1.0 Lux / F1.2 Black and White: 0.5 Lux / F1.2 DSS Max: 0.001 Lux
Motion Features	ON/OFF
Backlight compensation/WDR	ON/BLC/HSBLC/WDR
White Balance	ATW/Manual
3DNR	OFF/LOW/MIDDLE/HIGH
Day & Night Function	AUTO/Color/Black and White
AGC	0-20
Privacy Masking	Up to 16 zones
DEFOG (Fog removal function)	ON/OFF
Electronic Shutter System	Manual/Auto
Image inversion function	Flip vertically and horizontally
lens	f3.7mm 3 megapixel pinhole lens
Iris	Electronic iris
Operating temperature	-10℃～50℃
power supply	DC12V/110mA
Dimensions (mm)	H39×W39×D31
weight	Approx. 74g (camera body and mounting bracket) Approx. 42g (camera cable)

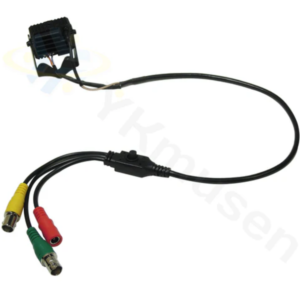

What’s in the box	YKS-PNP210 SDI camera body Camera mounting bracket Camera connection cable DC12V-AC adapter Instruction manual (1 year product warranty)
