YK Wireless Co.Ltd

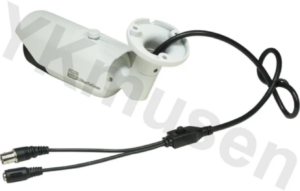

YK YKS-SB1080AHD AHD Rainproof Infrared Security Camera
Manufacturer: YK Wireless Co., Ltd.
Model: YKS-SB1080AHD
Features
- Bullet-type security camera compatible with AHD and CVBS formats
- Easily realize full HD quality surveillance
- Equipped with SONY 2 megapixel CMOS image sensor
- IP66 compliant waterproof performance for outdoor installation
- Equipped with infrared irradiation function with a maximum irradiation distance of 20m
- Equipped with D-WDR function to handle backlit environments
Specifications
| Image Sensor | 2 megapixel SONY CMOS image sensor |
| Number of pixels | 1920×1080 / Output resolution 1920×1080 (1080p) |
| Horizontal resolution | 1100 TV lines or more |
| Backlight Compensation | OFF / BLC / HSBLC |
| WDR | OFF / D-WDR |
| White Balance | ATW / AWC / MANUAL / AWB |
| DNR | OFF / 2DNR / 3DNR |
| Minimum illumination | 0.1Lux/F1.2 (0Lux within infrared irradiation) |
| Day/Night Function | Equipped (IR cut filter automatic switching type) |
| Infrared irradiation distance | Approximately 20m (Please consider the practical value to be 30-50% lower) *Smart IR compatible (equipped with a function to suppress whiteout caused by infrared irradiation) |
| Waterproof performance | Equivalent to IP66 (suitable for installation outdoors in places exposed to rain) |
| lens | f3.6mm/F1.2 |
| Video Output | AHD (HD video output) / CVBS (analog video output) switchable |
| Operating temperature | -10 to 50°C |
| power supply | DC12V/IR off: Approx. 100mA IR on: Approx. 280mA *When ICR is switch, it is approx. 420mA momentarily |
| External dimensions (mm) | Diameter 52 x D120 (210) |
| weight | Approx. 384g |
| What’s in the box | YKS-SB1080AHD camera body Camera bracket (pre-install/cannot remove) Mounting screws DC12V-AC adapter Product warranty (warranty period 1 year) |
