YK Wireless Co.Ltd

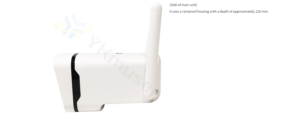

YK YKS-WF620SL4M Outdoor Network Camera
Manufacturer: YK Wireless Co., Ltd.
Model: YKS-WF620SL4M
Features
- Equipped with a large separate solar panel and a large capacity battery for long-term operation
- Equipped with Wi-Fi Direct communication function
- Automatic recording function by PIR sensor
- High-definition photography possible with 4 million pixels
- Equipped with infrared irradiation function with a maximum irradiation distance of 20m
- Compliant with IP67 waterproof standard, excellent waterproof and dustproof properties
Specifications
| Image Sensor | 2MP CMOS image sensor |
| Video compression method | H.265 |
| Recording Resolution | 2560×1440 |
| Frame rate | Up to 20fps |
| Video Recording Time | 15 seconds until sensor detection ends |
| lens | f3.6mm equivalent (angle of view: approx. 75°) |
| Infrared LED | 4 lights |
| Infrared irradiation distance | Approximately 15m |
| PIR Detection Distance | Approximately 8m |
| PIR detection angle | 120 degrees |
| PIR Response Rate | 0.6 seconds |
| Night Mode | Monochrome photography using infrared LED irradiation / Equipped with white LED |
| Audio recording | Built-in voice microphone |
| speaker | Equipped with a speaker (audio warnings possible via app) |
| Recording medium | microSD card (up to 128GB) |
| Overwrite recording function | Installed (delete data and start recording again) |
| power supply | Solar Energy Storage |
| Battery Type | Lithium-ion |
| Battery capacity | 9600mAh lithium battery |
| Network Interface | IEEE 802.11 b/g/n |
| Waterproof | IP67 equivalent |
| Operating environment temperature and humidity | -10℃～60℃ / 5%～90% |
| weight | Approx. 1 kg |
| size | W62×H72×D128mm *Excluding antenna and protrusions |
| Product warranty period | 1 year |
| What’s in the box | YKS-WF620SL4M Camera body Bracket x 2 (for camera, for solar panel) Solar panel connection bracket (for installation on top of camera) Antenna x 2 (cannot be removed) USB cable Japanese instruction manual PC regeneration instructions |
