Mizumoto MZ Series Stainless Steel Mooring Ring
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: MZ Series
Features
- Because it is made of stainless steel, it is resistant to corrosion and is beautiful compared to conventional iron mooring rings, which are prone to corrosion.
- It is set up at piers and wharves, and wire ropes are tied to moor ships.
Specifications
| Part No. | d | D1 | D2 | L | W | W1 | Calculated Weight (kg) | Reference Working Load (tf) | (kN) |
| MZ-16 | 16 | 120 | 40 | 250 | 216 | 100 | 1.9 | 1 | 9.8 |
| MZ-19 | 19 | 150 | 42 | 300 | 219 | 100 | 3.3 | 1.5 | 14.7 |
| MZ-22 | 22 | 175 | 50 | 350 | 222 | 100 | 5 | 2 | 19.6 |
| MZ-25 | 25 | 200 | 55 | 400 | 225 | 100 | 7.2 | 3 | 29.4 |
| MZ-28 | 28 | 200 | 100 | 450 | 348 | 160 | 10.3 | 4 | 39.2 |
| MZ-32 | 32 | 200 | 100 | 450 | 352 | 160 | 13.6 | 5 | 49 |

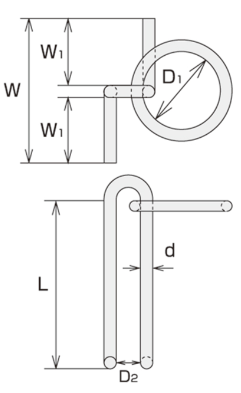

Dimensions (mm)
