Mizumoto Machine Mfg. Co.

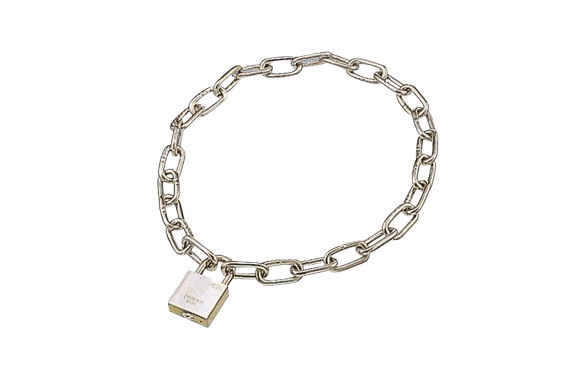

Mizumoto SDL Series Super Differential Lock
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SDL Series
Features
- By using stainless steel special steel chains, the chain strength has been increased by more than three times compared to the same wire diameter of our SUS304.
- For large doors, warehouses, and garage keys. For the key to motorcycles, bicycles, etc.
- To prevent theft of ship equipment, accessories, etc.
- Chain = chrome plated finish. Comes with 3 keys.
Specifications
Material: Hook: Stainless Steel Chain: Stainless Steel SUS420J2
| Part No. | Chain Length | D | P | W | Hook | Weight (g) |
| L | ||||||
| SDL-30-6 | 600 | 5.5 | 30 | 8 | SDK-30 | 419 |
| SDL-30-10 | 1000 | 5.5 | 30 | 8 | SDK-30 | 639 |
| SDL-40-6 | 600 | 6 | 31 | 10 | SDK-40 | 618 |
| SDL-40-10 | 1000 | 6 | 31 | 10 | SDK-40 | 898 |
| SDL-50-6 | 600 | 8 | 38 | 12 | SDK-50 | 1098 |
| SDL-50-10 | 1000 | 8 | 38 | 12 | SDK-50 | 1578 |
| SDL-65-6 | 600 | 9 | 39 | 13 | SDK-65 | 1726 |
| SDL-65-10 | 1000 | 9 | 39 | 13 | SDK-65 | 2356 |

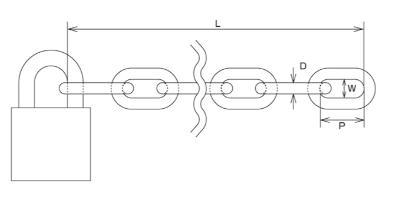

Dimensions (mm)
