SUNCO

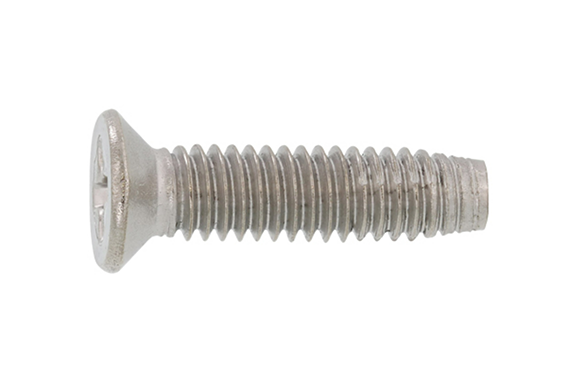

30-600H Evatite Small D=7 Flat Head
Model: 30-600H
Dia range:M4～M4
Length range:8～16
SUS410.
Plain.

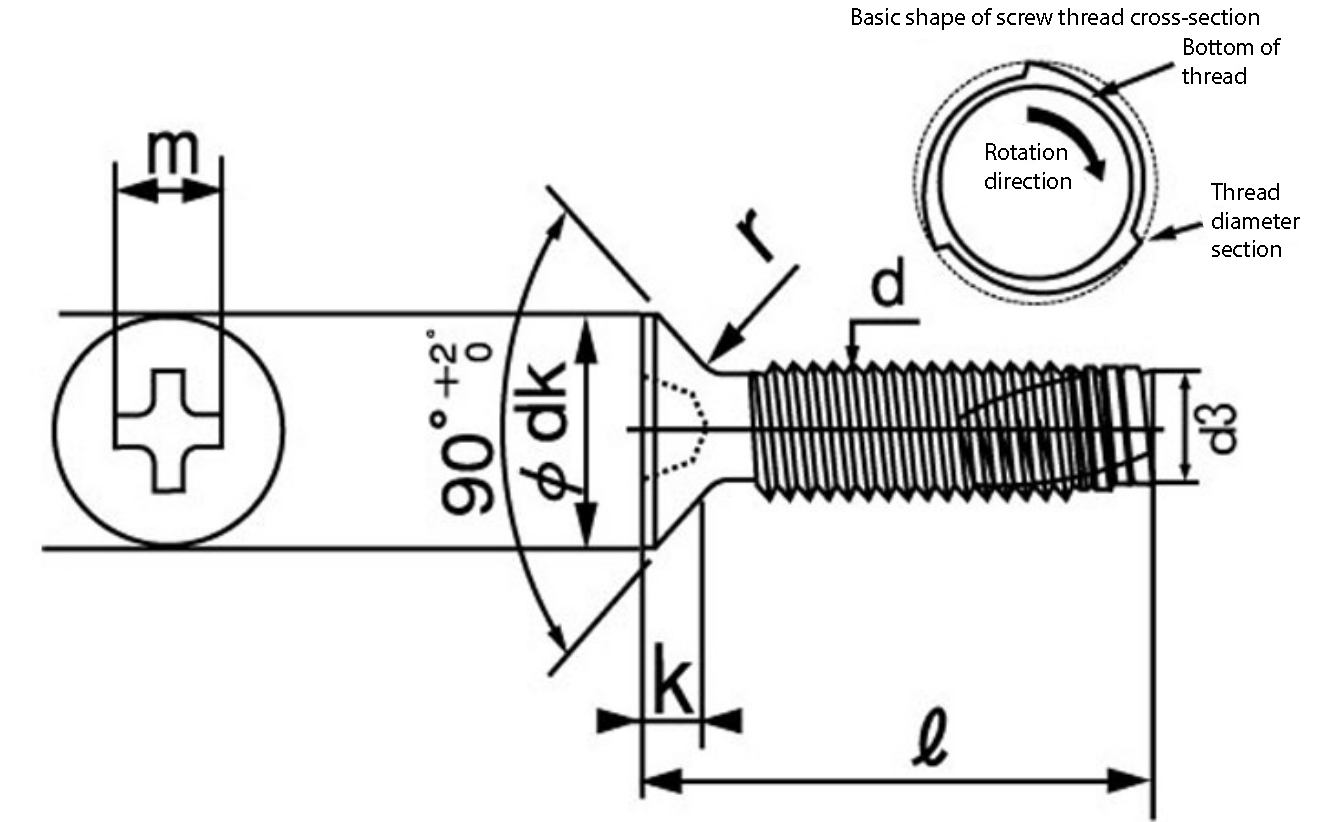

| Nominal thread size | P (Pitch) | d | d3 | dk | k | m | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Standard Dimension | Tolerance | Standard Dimension | Tolerance | Reference | ||
| 4 | 0.7 | 3.97 | 3.84 | 2.93 | 2.67 | 7 | 0 -0.5 | 1.75 | 0 -0.3 | 4.1 |
